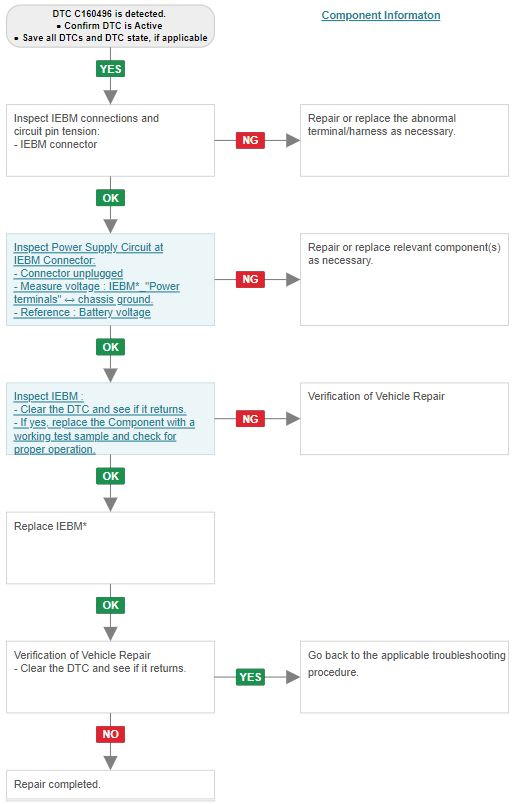

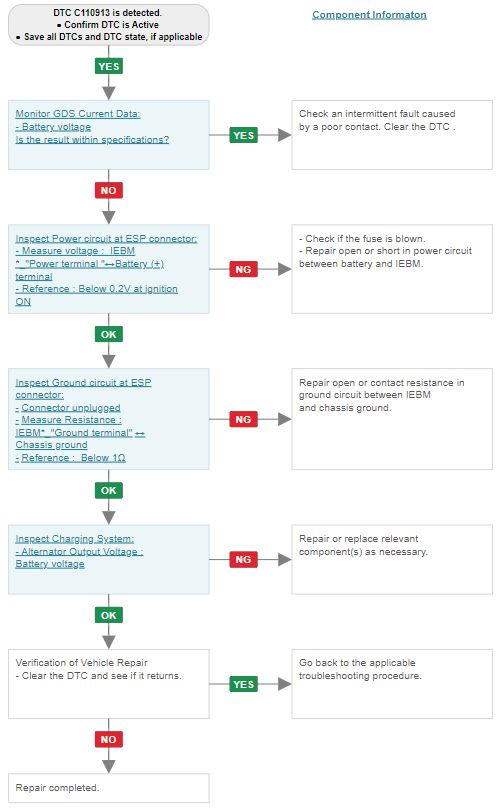

Diagnostic Flowchart
WARNING: This page is about a different variant/trim than selected.
NOTE:
* In a case of replacing IEBM, perform following functions
1) "Steering Angle Sensor Calibration" for steering angle sensor offset correction (refer to DTC C1261-04: Steering Angle Sensor Not Calibrated ) -ESP (ESC) only
2) "Longitudinal Sensor Calibration" for Longitudinal sensor offset correction (refer to DTC C1285-04: Uncalibrated Ax Signal ) - ESP (ESC) only
3) "Variant Coding" for option coding (refer to DTC C1702-04: VARIANT CODING ERROR )
