GDS Current Data

WARNING: This page is about a different variant/trim than selected.
  1. Connect GDS to Data Link Connector (DLC).
  2. Turn ignition switch and engine "ON".

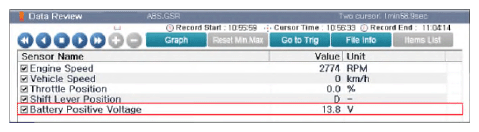

  3. Monitor the "BATTERY VOLTAGE" parameter on the "Current Data" menu of the GDS.

    Specification:  Below. 16.5±0.5V

    G15450044Courtesy of HYUNDAI MOTOR AMERICA
