Component Function: Gateway

WARNING: This page is about a different variant/trim than selected.

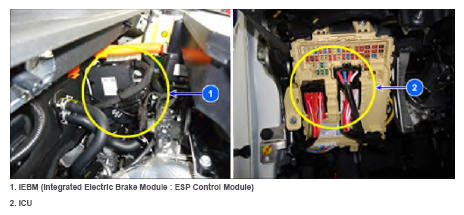

G15450033Courtesy of HYUNDAI MOTOR AMERICA

Through the CAN line, the ESP/EPB Module receives data from CAN CGW (Central Gate Way) such as seatbelt, door, trunk, hood and etc. and then operates the EPB system.
