ESP (ECS/TCS) OFF Switch

WARNING: This page is about a different variant/trim than selected.

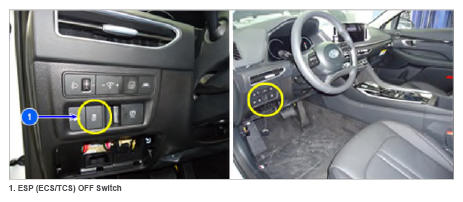

G15450023Courtesy of HYUNDAI MOTOR AMERICA

A driver can control the ESC system by the ESP OFF switch.

When the switch signals to the IEBM, the ESC warning lamp will go "ON" and the ESC control will stop. If the driver hits the switch again, the ESC control will be back on. This function is used for sporty driving or vehicle inspection.
