Removal And Installation
WARNING: This page is about a different variant/trim than selected.

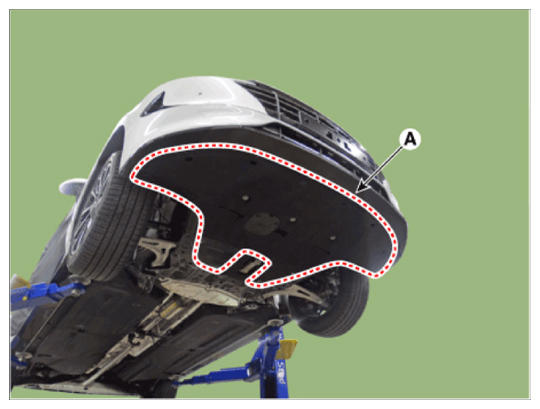

- Remove the engine room under cover (A).

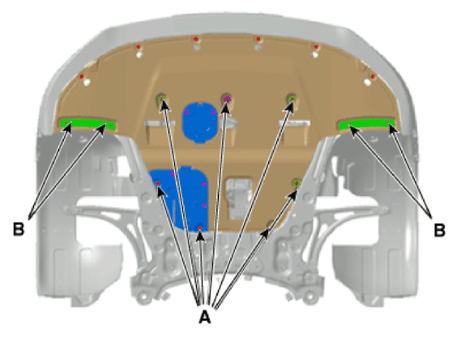

Tightening torque:
Bolt (A): 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
Bolt (B): 3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)
 Courtesy of HYUNDAI MOTOR AMERICA
|
 Courtesy of HYUNDAI MOTOR AMERICA
|
- Installation is reverse order of removal.
