Transaxle Mounting Bracket
WARNING: This page is about a different variant/trim than selected.

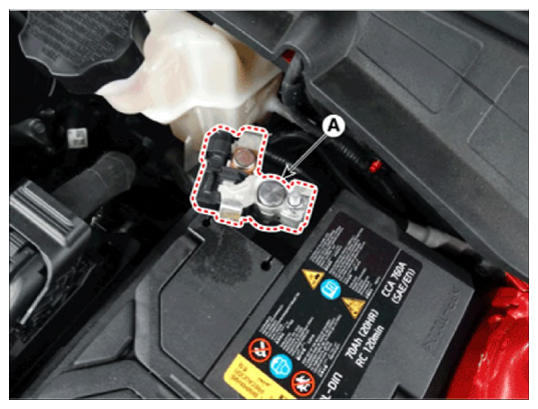

- Disconnect the negative battery terminal.
Tightening torque:
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

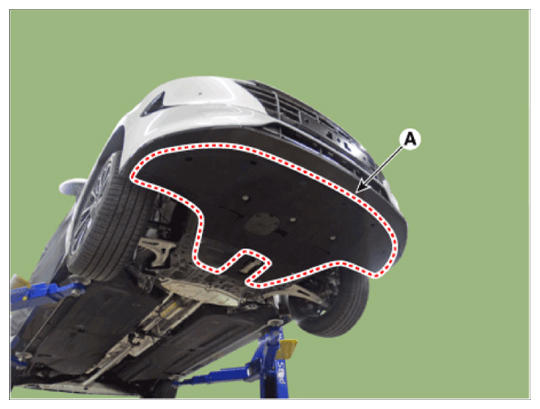

- Remove the engine room under cover (A).
Tightening torque:

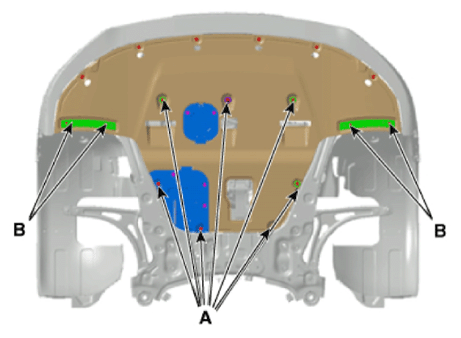

Bolt (A): 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
Bolt (B): 3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

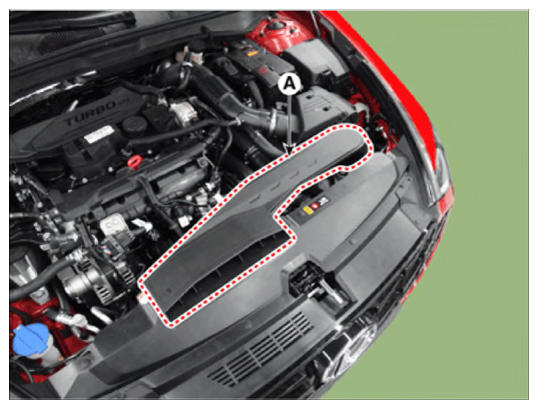

- Remove the air duct (A).
- Remove the air cleaner assembly.

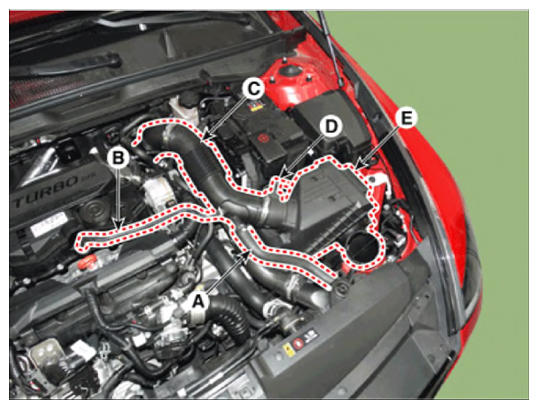

- Disconnect the RCV hose (A).
- Disconnect the bleeder hose (B).
- Disconnect the intake hose (C) from turbocharger.
- Disconnect the AFS connector (D).
- Remove the air cleaner assembly (E).
Tightening torque:
Hose clamp: 2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb-ft)
Air cleaner assembly mounting bolt: 3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

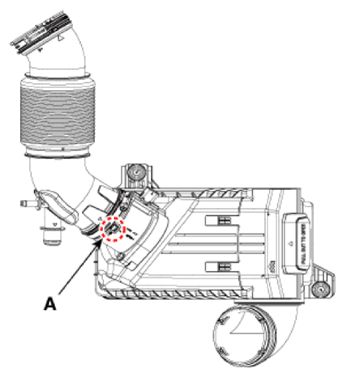

NOTE:- When assembling the intake hose, match the alignment mark (A).
- Remove the battery.

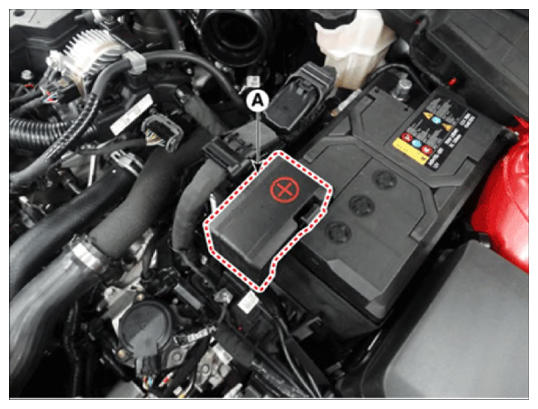

- Open the positive battery cable cover (A).

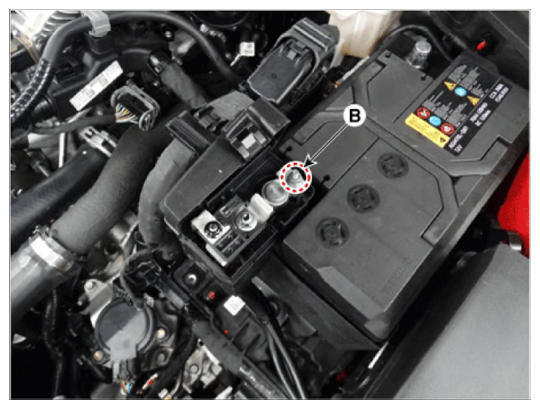

- Loosen the positive battery cable mounting nut (B).
Tightening torque:
7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

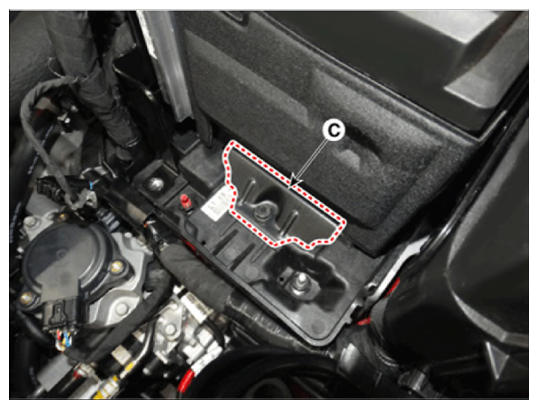

- Remove the battery mounting bracket (C) and then remove the battery.
Tightening torque:
18.6 - 29.4 N.m (1.9 - 3.0 kgf.m, 13.7 - 21.7 lb-ft)
- Open the positive battery cable cover (A).
- Disconnect the ECM connector (A).

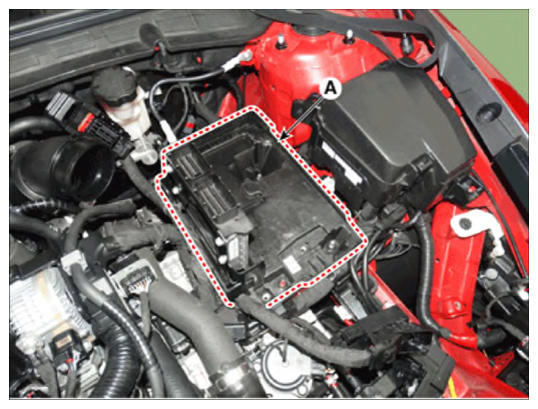

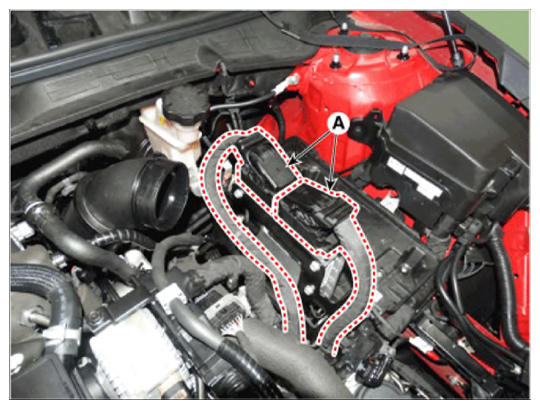

- Remove the ECM and battery tray (A).
Tightening torque:
18.6 - 29.4 N.m (1.9 - 3.0 kgf.m, 13.7 - 21.7 lb-ft)

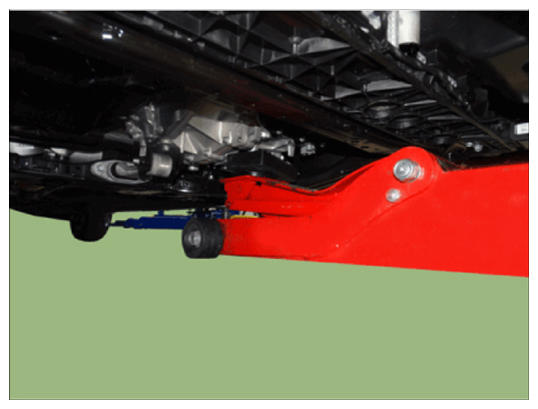

- Place the jack under the transaxle.NOTE:
- Insert the rubber block between jack and transaxle.

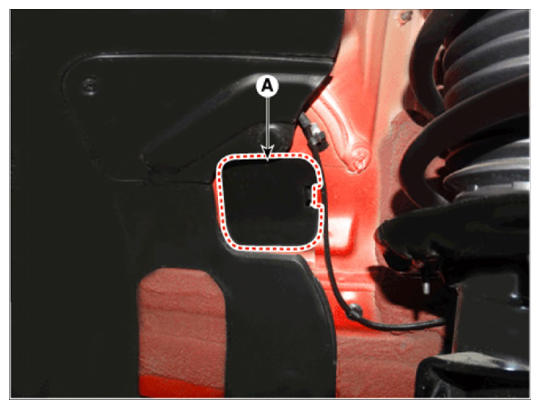

- Remove the service cover (A).

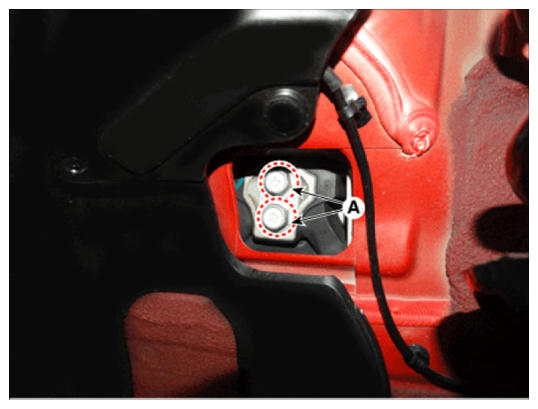

- Loosen the transaxle support bracket mounting bolts (A).
Tightening torque:
107.9 - 127.5 N.m (11 - 13 kgf.m, 79.6 - 94.0 lb-ft)

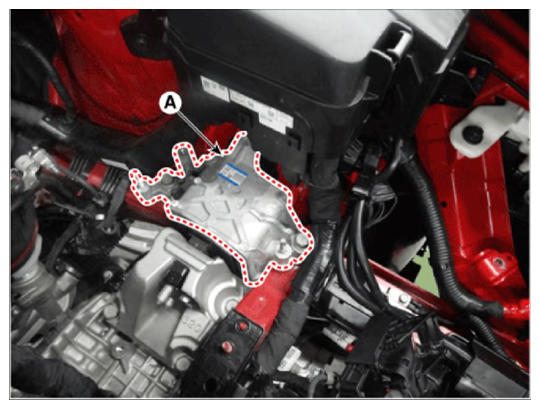

- Remove the transaxle mounting bracket (A).
Tightening torque:
68.6 - 88.3 N.m (7.0 - 9.0 kgf.m, 50.6 - 65.1 lb-ft)
- Installation is in the reverse order of removal.
