Roll Rod Bracket

WARNING: This page is about a different variant/trim than selected.

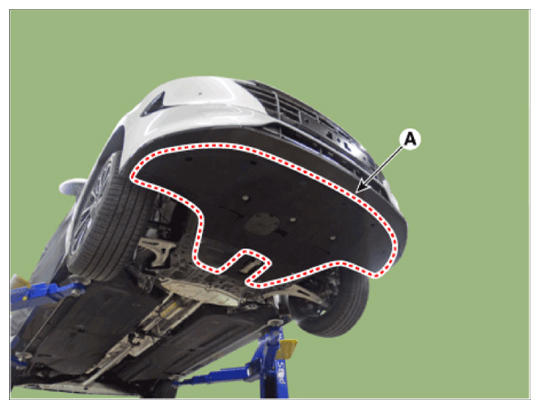

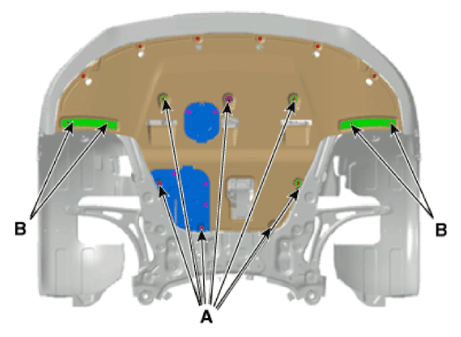

Remove the engine room under cover (A).
Tightening torque:

Bolt (A): 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

Bolt (B): 3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

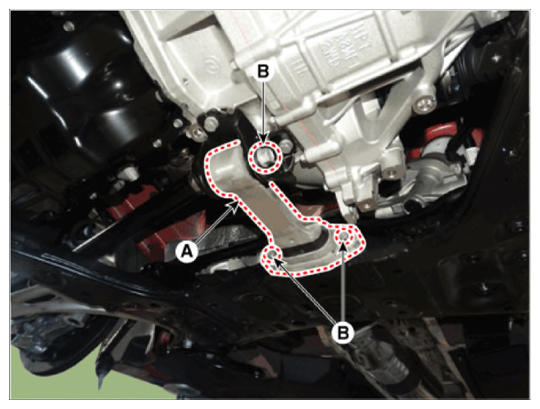

Remove the roll rod bracket (A).
Tightening torque:

Bolt (B): 107.9 - 127.5 N.m (11 - 13 kgf.m, 79.6 - 94.0 lb-ft)

Bolt (C): 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

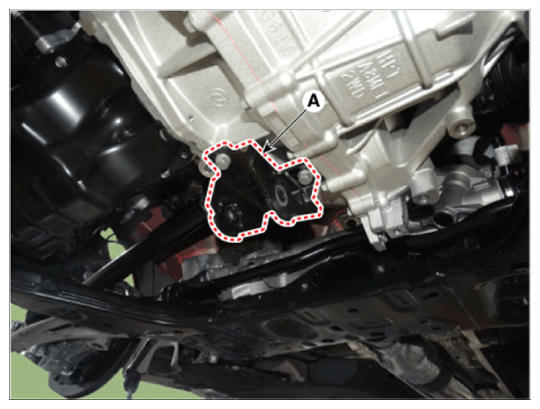

Remove the roll rod support bracket (A).
Tightening torque:

49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Installation is in the reverse order of removal.
