Engine Mounting Bracket

WARNING: This page is about a different variant/trim than selected.

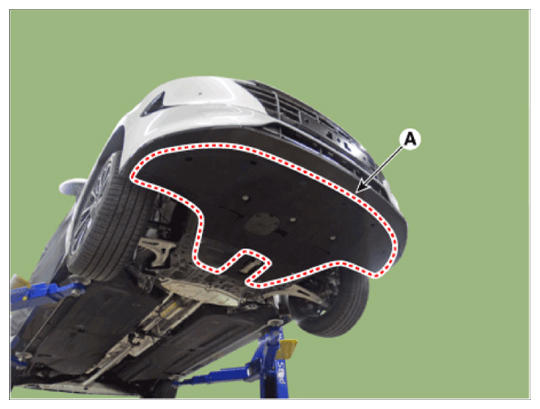

Remove the engine room under cover (A).

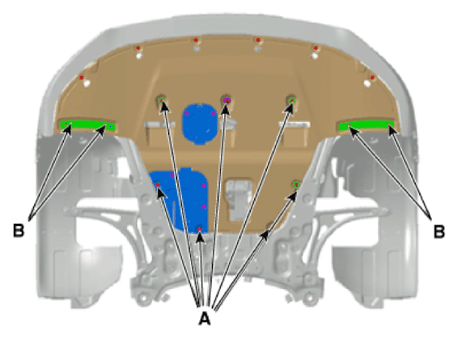

Tightening torque:

Bolt (A): 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

Bolt (B): 3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

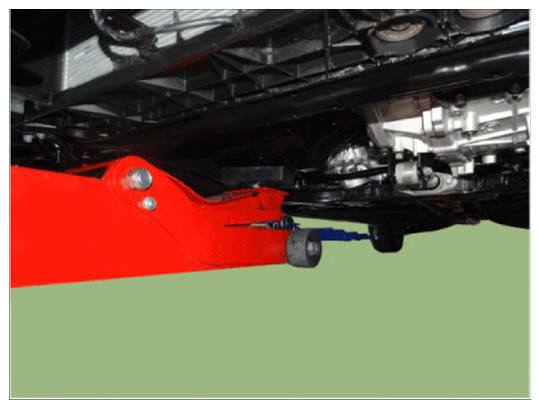

Install the jack to the edge of oil pan.

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Insert the rubber block between jack and oil pan.

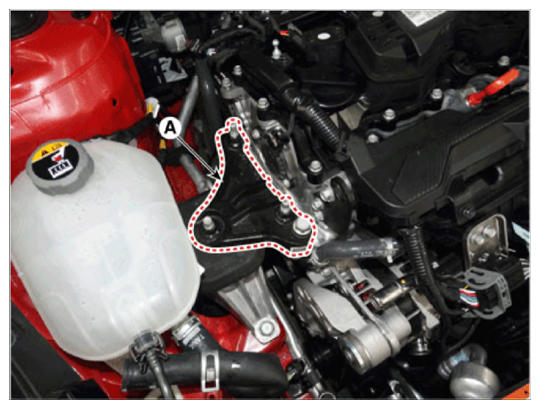

Remove the engine mounting support bracket (A).
Tightening torque:

88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

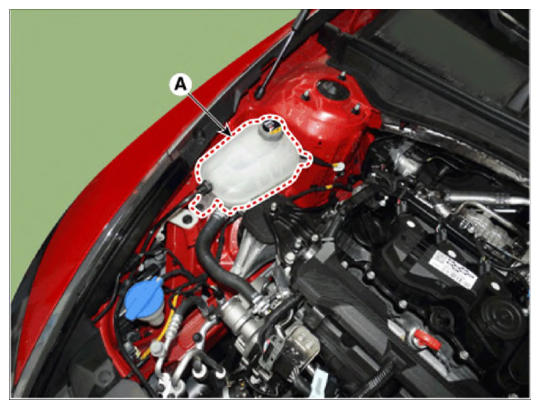

Loosen the reservoir tank (A) mounting bolts to obtain engine mounting working space.

Courtesy of HYUNDAI MOTOR AMERICA

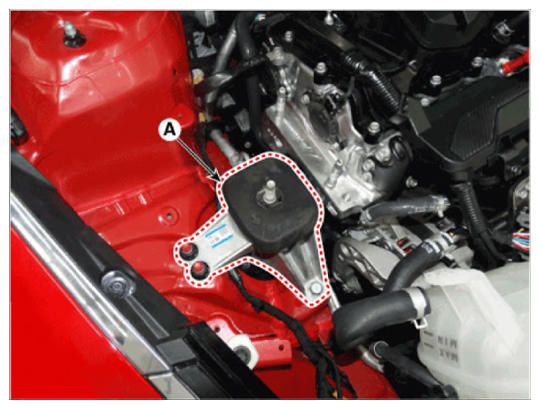

Remove the engine mounting bracket (A).
Tightening torque:

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Installation is in the reverse order of removal.
