Oil Pump Chain
WARNING: This page is about a different variant/trim than selected.
- Disconnect the battery negative terminal.
- Remove the timing chain.
(Refer to Timing System - "TIMING CHAIN ")

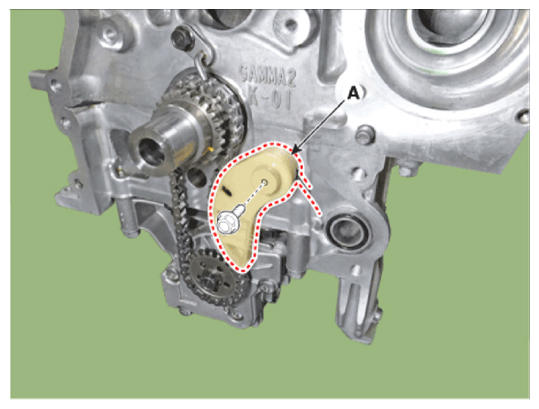

- Remove the oil pump chain tensioner (A).
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

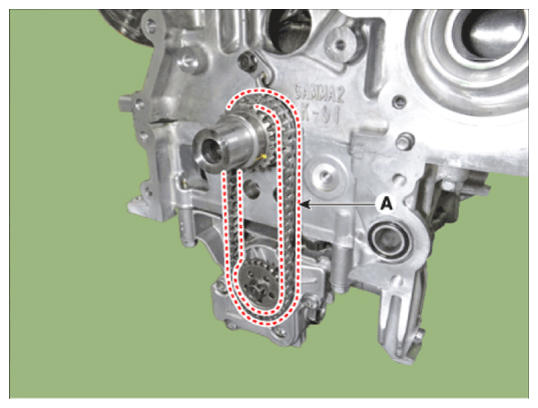

- Remove the oil pump chain (A).
- Install in the reverse order of removal.
- Refill engine oil.
(Refer to Lubrication System - "ENGINE OIL ")
