Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly System - "ENGINE ROOM UNDER COVER ")
Drain the engine oil.
(Refer to Lubrication System - "ENGINE OIL ")

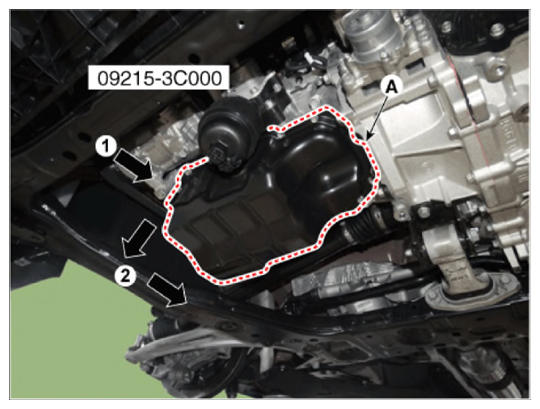

Using the SST (09215-3C000) and remove the oil pan (A).

Courtesy of HYUNDAI MOTOR AMERICA

Information
- Insert the SST between the oil pan and the ladder frame by tapping it with a plastic hammer in the direction of (1) arrow.
- After tapping the SST with a plastic hammer along the direction of (2) arrow around more than 2/3 edge of the oil pan, remove it from the cylinder block.
NOTE:
- Do not turn over the SST abruptly without tapping. It be result in damage of the SST.
