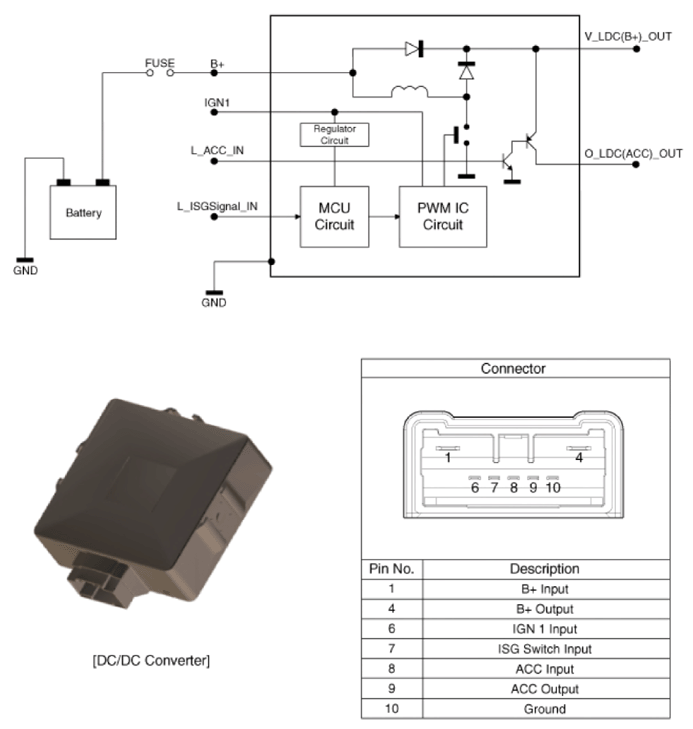

Circuit Diagram: [200W]

WARNING: This page is about a different variant/trim than selected.

G14524701

Courtesy of HYUNDAI MOTOR AMERICA
