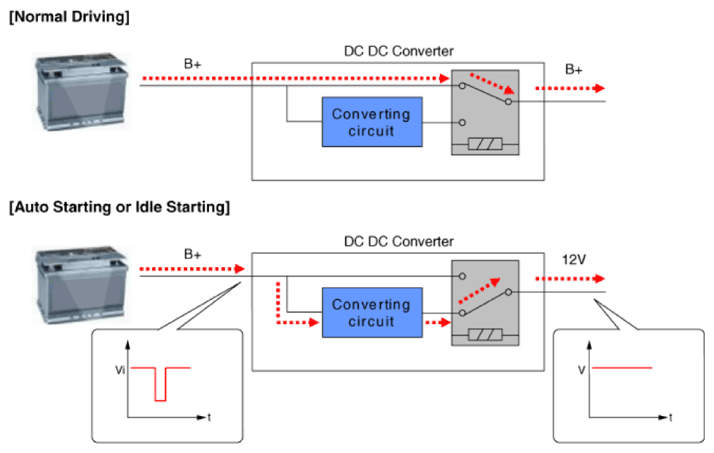

Operation Principle

WARNING: This page is about a different variant/trim than selected.

Courtesy of HYUNDAI MOTOR AMERICA

Information

In the ISG mode, if the power of an audio system turns OFF by draw down while "Auto Starting" or "Idle Starting" function operates, replace the DC/DC converter.
