Repair Procedures: Removal: [Battery]
WARNING: This page is about a different variant/trim than selected.

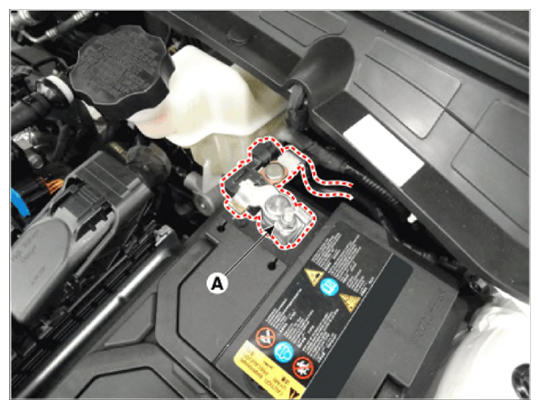

- Turn the ignition switch OFF, and then disconnect the battery negative (-) terminal (A).
Tightening Torque:
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.4 Ib-ft)

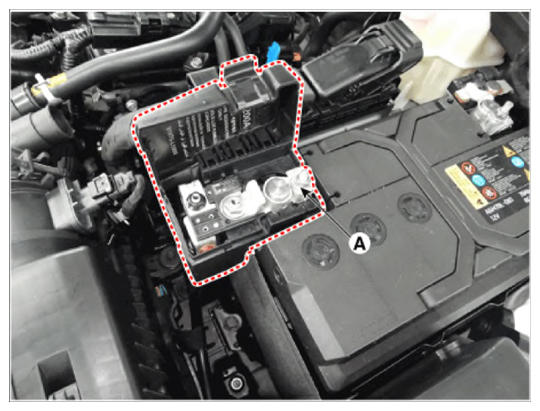

- Disconnect the battery (+) terminal (A).
Tightening Torque:
7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.2 - 7.2 Ib-ft)

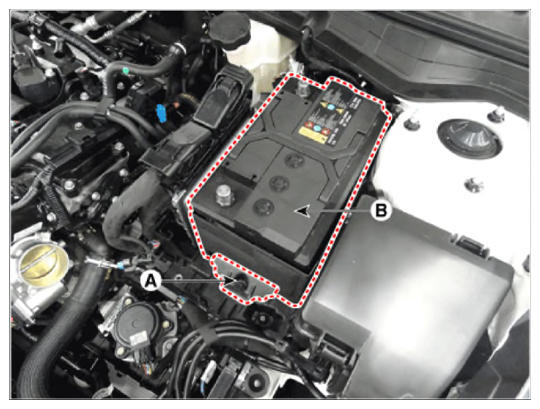

- Remove the battery mounting bracket (A), and then remove the battery (B).
Tightening Torque:
18.6 - 29.4 N.m (1.9 - 3.0 kgf.m, 13.7 - 21.7 Ib-ft)
