[Battery Tray]
WARNING: This page is about a different variant/trim than selected.
- Remove the battery.
(Refer to "REMOVAL " procedure)
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the engine control module (ECM).
(Refer to Engine Control/Fuel System - "ENGINE CONTROL MODULE (ECM) ")

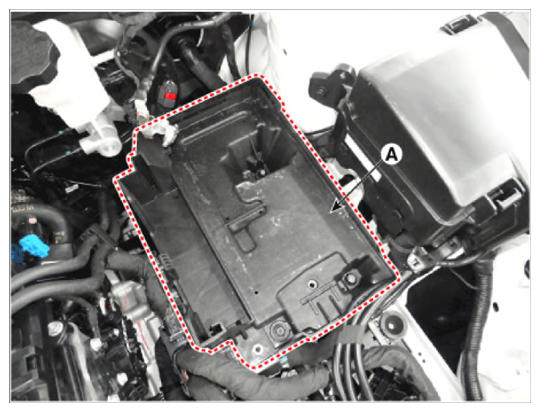

- Remove the battery tray (A) after loosening the mounting bolt and nut.
Tightening Torque:
18.6 - 29.4 N.m (1.9 - 3.0 kgf.m, 13.7 - 21.7 Ib-ft)
