Battery Load Tester

Determine the battery voltage drop when discharging at fixed load (120A) for a 5 seconds.

Courtesy of HYUNDAI MOTOR AMERICA

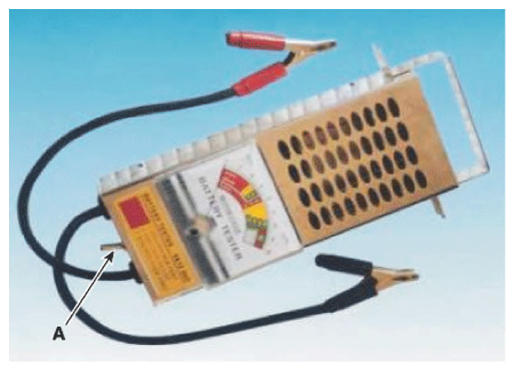

1. Connect the tester to the battery correctly (Red clamp to battery (+) terminal, Black clamp to battery (-) terminal).
2. Turn ON the test switch (A) of the tester 5 seconds.
   CAUTION:

   • Take care not to contact the load resistance top heating part (D) of the tester.
   • Do not test with a load of not recharged for more than 10 seconds.

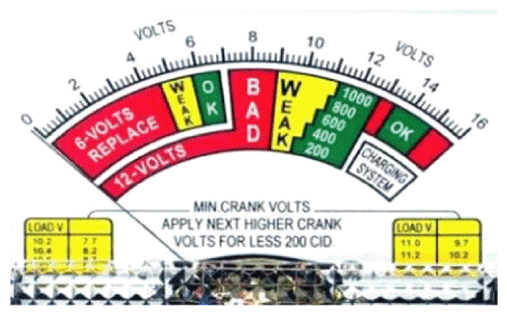

3. Check the instructions for the meter for 12V and refer to the below. (the green areas varies according to the battery cold cranking ampere (CCA), so check the battery specification.)

   Cold Cranking Ampere (CCA)	Voltage (V)
   1000A	11.2V
   800A	11.0V
   600A	10.7V
   400A	10.4V
   200A	10.0V

   NOTE: At low temperatures, temperature compensation is applied to the battery termination voltage refer to the below.

   • -7°C to -17°C (19.4°F - 1.4°F): Application lower than 1 step.
   • -18°C to -27°C (-0.4°F to -16.6°F): Application lower than 2 step.
   1. Green: Good condition of battery
   2. Yellow (WEAK): Good condition of battery, but requires recharging.
   3. Red (BAD): Battery over-discharge or poor condition, recharging the battery and retest to continue lowering without stopping in the yellow area (WEAK) requires battery replacement.

      Courtesy of HYUNDAI MOTOR AMERICA

      • Start the engine to check the state of charge by the alternator.
   1. Connect the clamp of tester to the each terminal of battery.
   2. Start the engine and check the tester.
   1. Green (OK): Alternator charging good
   2. Red (Left side): Alternator charging poor (Inspect the charging system)
   3. Red (Right side): Alternator over-charging (Inspect the charging system)
