Section 14 (Charging System - 1.6L (Except HEV)): Alternator: Specifications: Specification
WARNING: This page is about a different variant/trim than selected.
| ltem |
Specification |
| Rated Voltage |
13.5V 130A |
| Speed in use |
1, 000 - 18, 000 RPM |
| Voltage regulator |
IC Regulator built in type |
| Regulator Setting Voltage |
External mode |
10.6 - 16 ± 0.3V |
| Internal mode |
14.5 ± 0.3V |

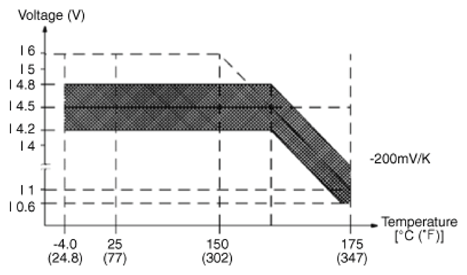

| Temperature Gradient |
External mode |
0 ± 2 mV/°C |
| Internal mode |
-3.5 ± 2 mV/°C |
 Courtesy of HYUNDAI MOTOR AMERICA
|
