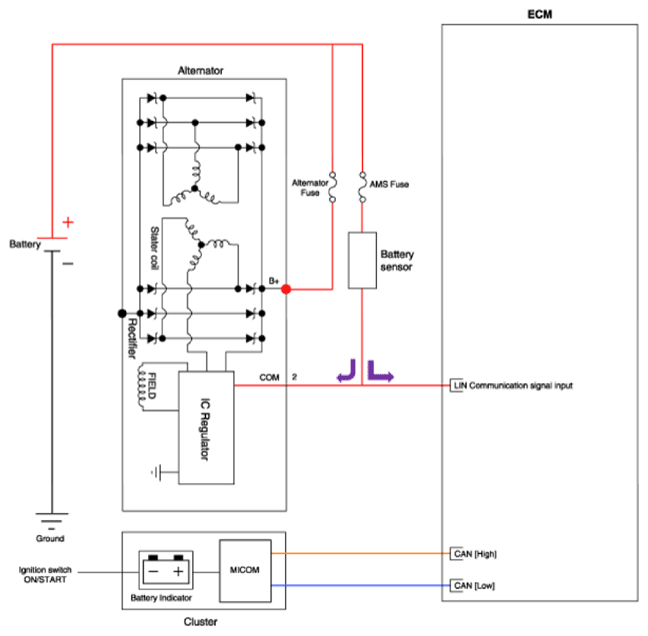

Schematic Diagrams
WARNING: This page is about a different variant/trim than selected.
 Courtesy of HYUNDAI MOTOR AMERICA
|
Information
- COM signal
- LIN communication control (Alternator target voltage data signal output, Alternator electric load signal input)
- B+ Terminal
- The output voltage from the generator travels to the battery via the B+ terminal.
