Repair Procedures: Inspection: [Stator]
WARNING: This page is about a different variant/trim than selected.

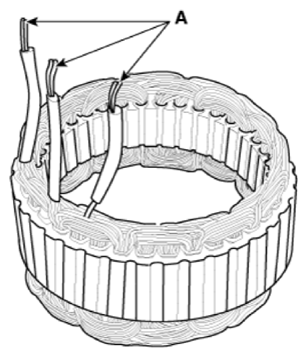

- Check that there is continuity between each pair of leads (A).
 Courtesy of HYUNDAI MOTOR AMERICA
|
- Check that there is no continuity between each lead and the coil core.
- If the coil fails either continuity check, replace the alternator.
