Repair Procedures: Inspection: [Rotor]
WARNING: This page is about a different variant/trim than selected.

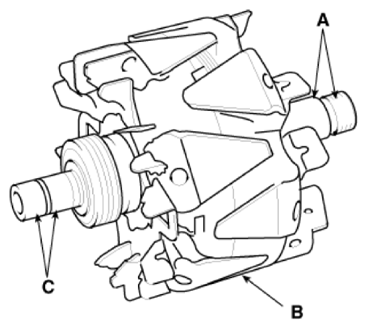

- Check that there is continuity between the slip rings (C).
 Courtesy of HYUNDAI MOTOR AMERICA
|
- Check that there is no continuity between the slip rings and the rotor (B) or rotor shaft (A).
- If the rotor fails either continuity check, replace the alternator.
