Disassembly and Reassembly

WARNING: This page is about a different variant/trim than selected.

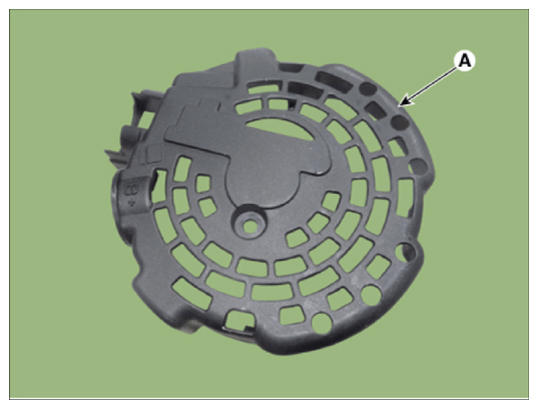

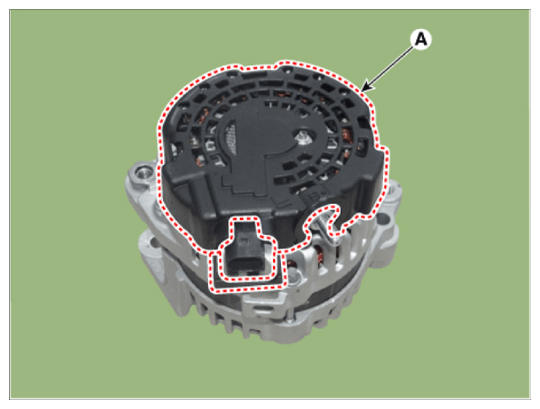

  1. Remove the rear cover (A).
    G14524687Courtesy of HYUNDAI MOTOR AMERICA
    G14524688Courtesy of HYUNDAI MOTOR AMERICA

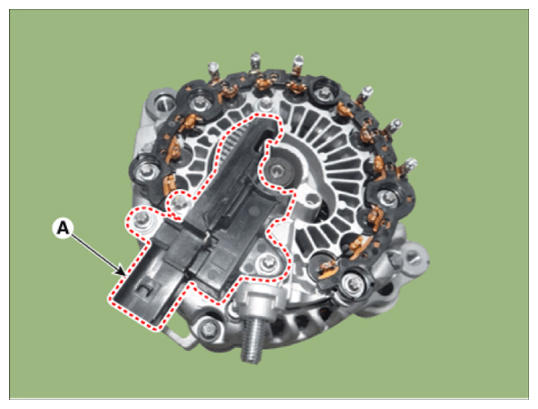

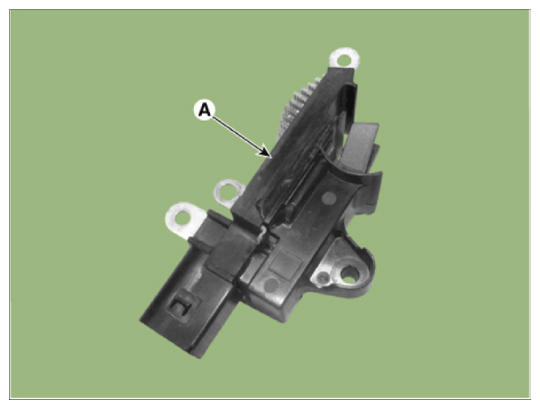

  2. Remove the regulator assembly (A) after loosening the mounting bolt.
    NOTE:
    • Be careful not to damage the surrounding parts.
    G14524689Courtesy of HYUNDAI MOTOR AMERICA
    G14524690Courtesy of HYUNDAI MOTOR AMERICA

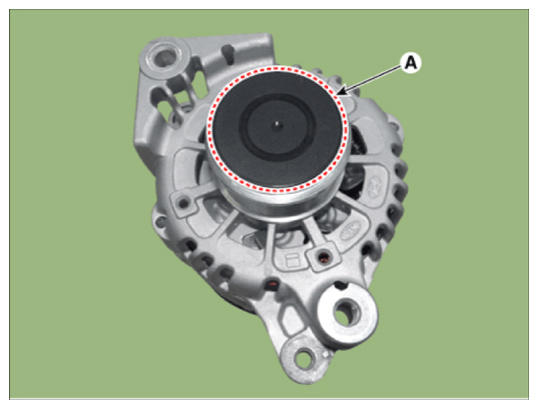

  3. Remove the overrunning alternator pulley (OAP) cap (A).
    G14524691Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • When installing, replace with new OAD cap.

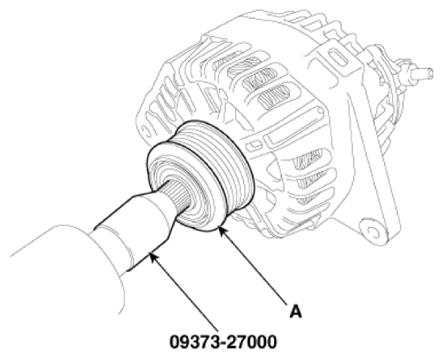

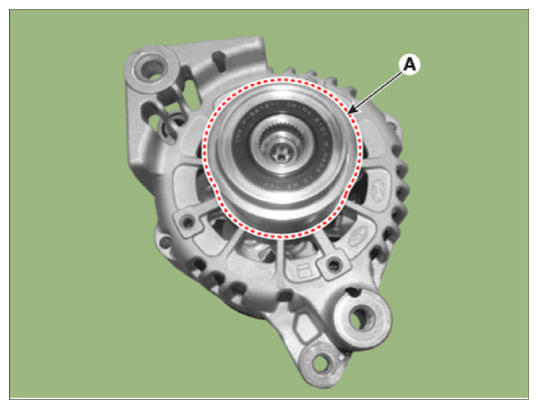

  4. Remove the OAP (A) using the SST (09373-27000).
    G14524692Courtesy of HYUNDAI MOTOR AMERICA
    G14524693Courtesy of HYUNDAI MOTOR AMERICA

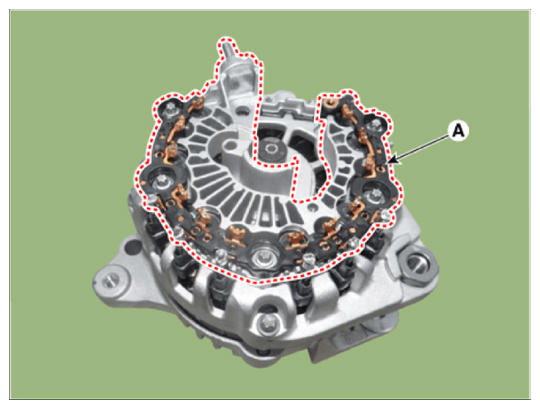

  5. Unsolder the stator leads and then removing the regulator (A).
    G14524694Courtesy of HYUNDAI MOTOR AMERICA
  6. Loosening the penetration bolt (A).
    G14524695Courtesy of HYUNDAI MOTOR AMERICA

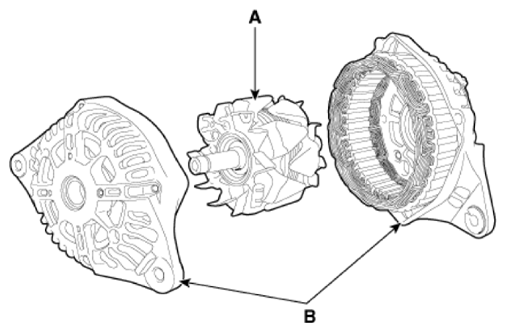

  7. Remove the rotor (A) from the housing (B).
    G14524696Courtesy of HYUNDAI MOTOR AMERICA
  8. Reassemble in the reverse order of disassemble.
