Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Turn the ignition switch OFF, and then disconnect the battery negative (-) terminal.
- Remove the rear seat cushion.
(Refer to Body - "REAR SEAT ASSEMBLY ")

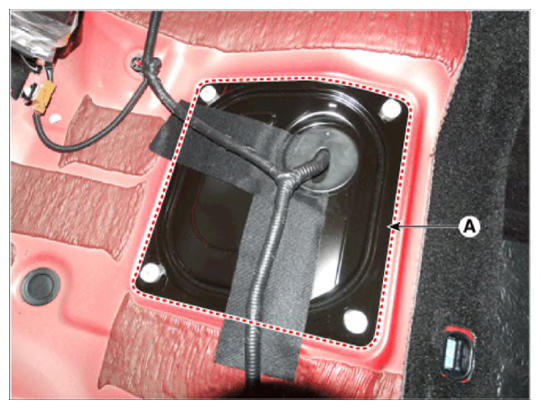

- Remove the fuel pump service cover (A).

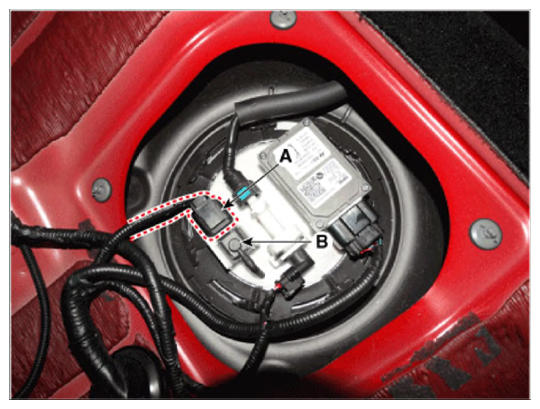

- Disconnect the fuel tank pressure sensor connector (A).
- Release the hook, and then remove the fuel tank pressure sensor (FTPS) (B) vertically from the fuel pump.
