Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the intercooler outlet hose.

    (Refer to Engine Mechanical System - "INTERCOOLER ")

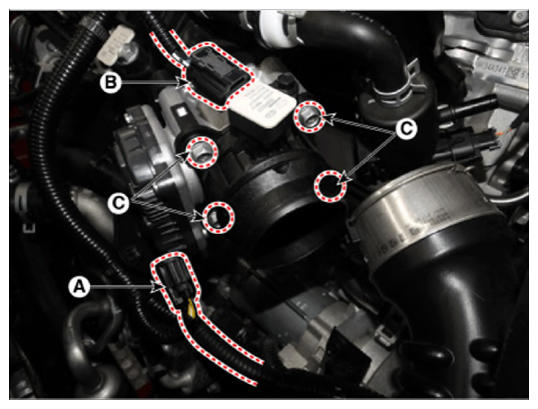

  3. Disconnect the ETC Module Connector (A).
  4. Disconnect the MAPS connector (B).
  5. Remove the ETC module after loosening the mounting bolt (C).
G14524883Courtesy of HYUNDAI MOTOR AMERICA
