Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Turn the ignition switch OFF, and then disconnect the battery negative (-) terminal.
- Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

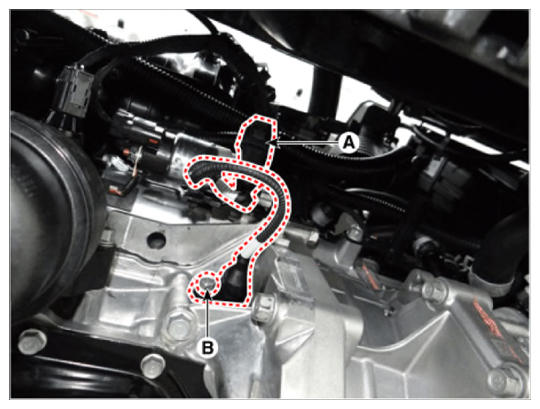

- Disconnect the crankshaft position sensor connector (A).
- Remove the sensor after loosening the mounting bolt (B).
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
