Components Location

WARNING: This page is about a different variant/trim than selected.

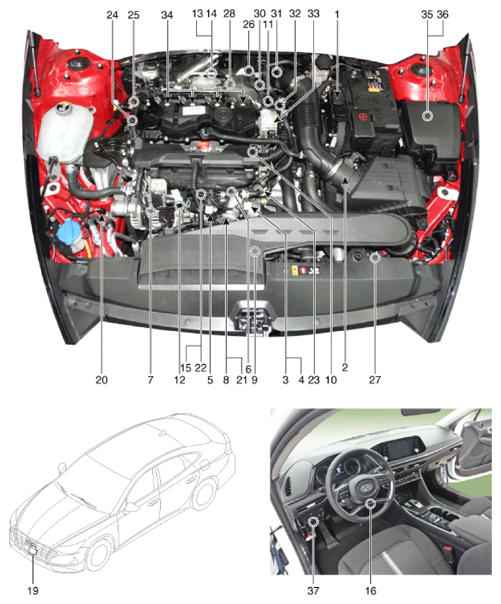

G14524858Courtesy of HYUNDAI MOTOR AMERICA

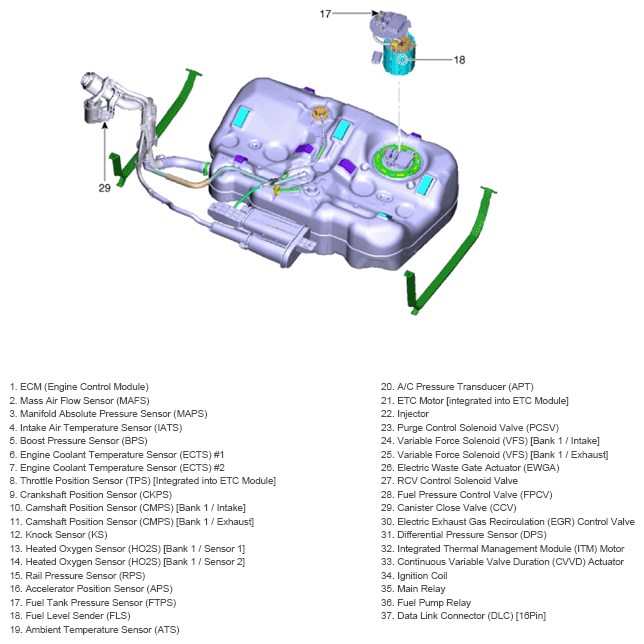

G14524859Courtesy of HYUNDAI MOTOR AMERICA

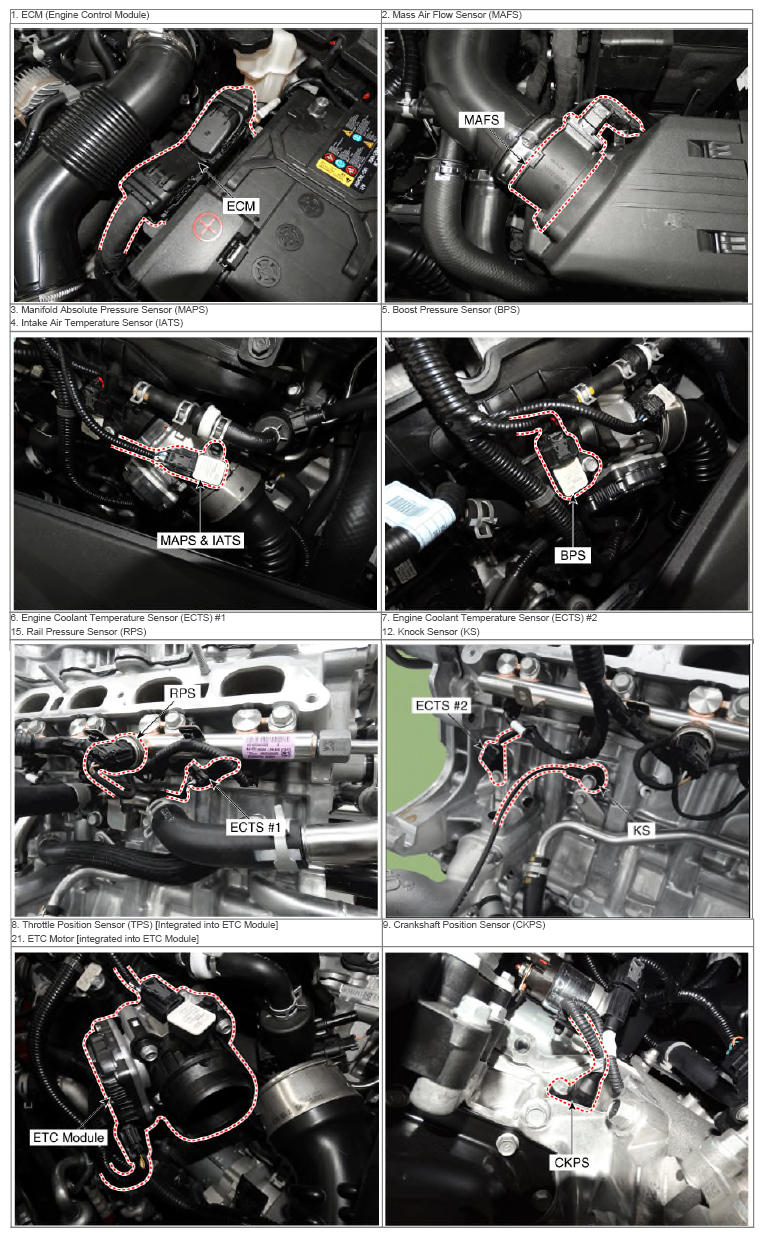

G14524860Courtesy of HYUNDAI MOTOR AMERICA

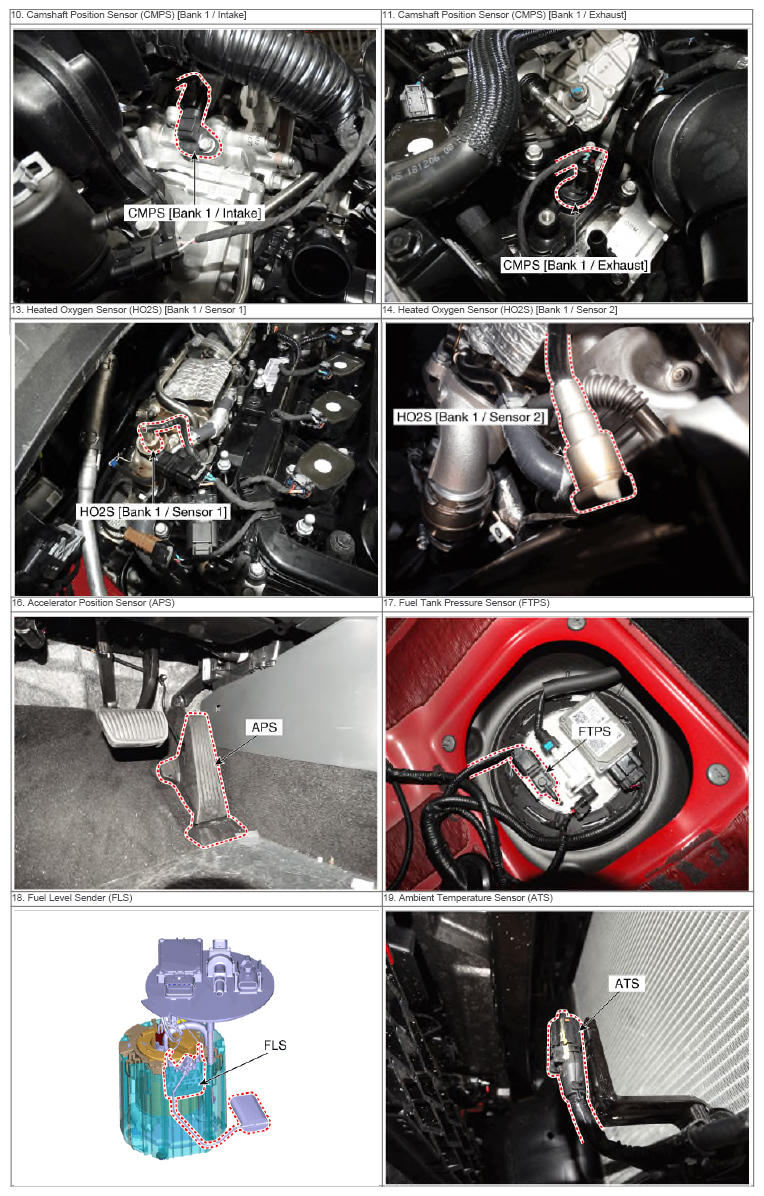

G14524861Courtesy of HYUNDAI MOTOR AMERICA

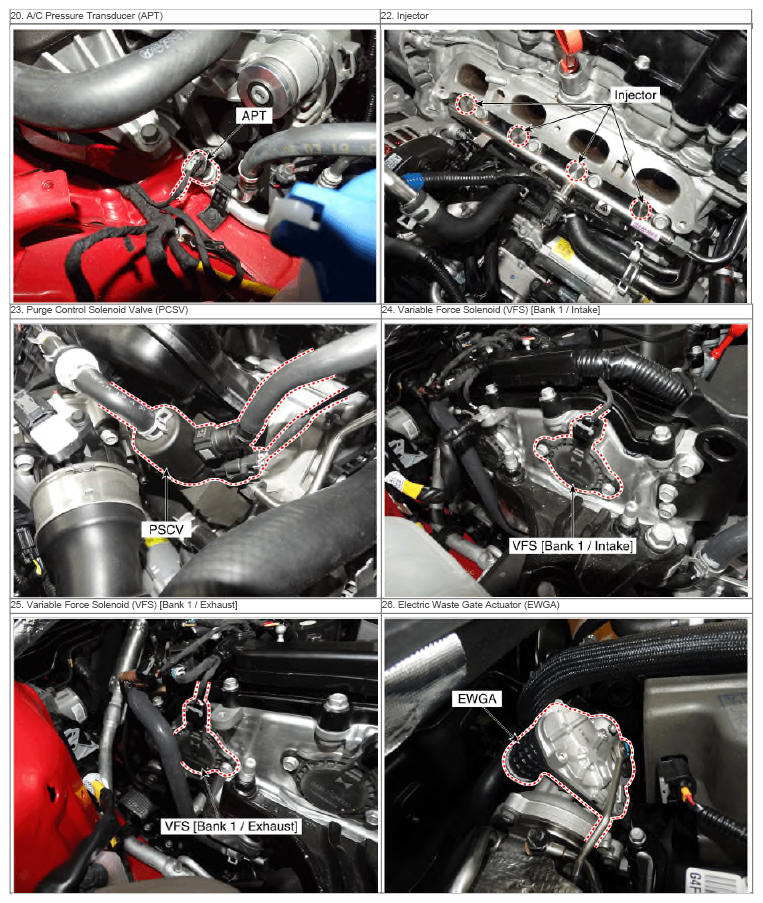

G14524862Courtesy of HYUNDAI MOTOR AMERICA

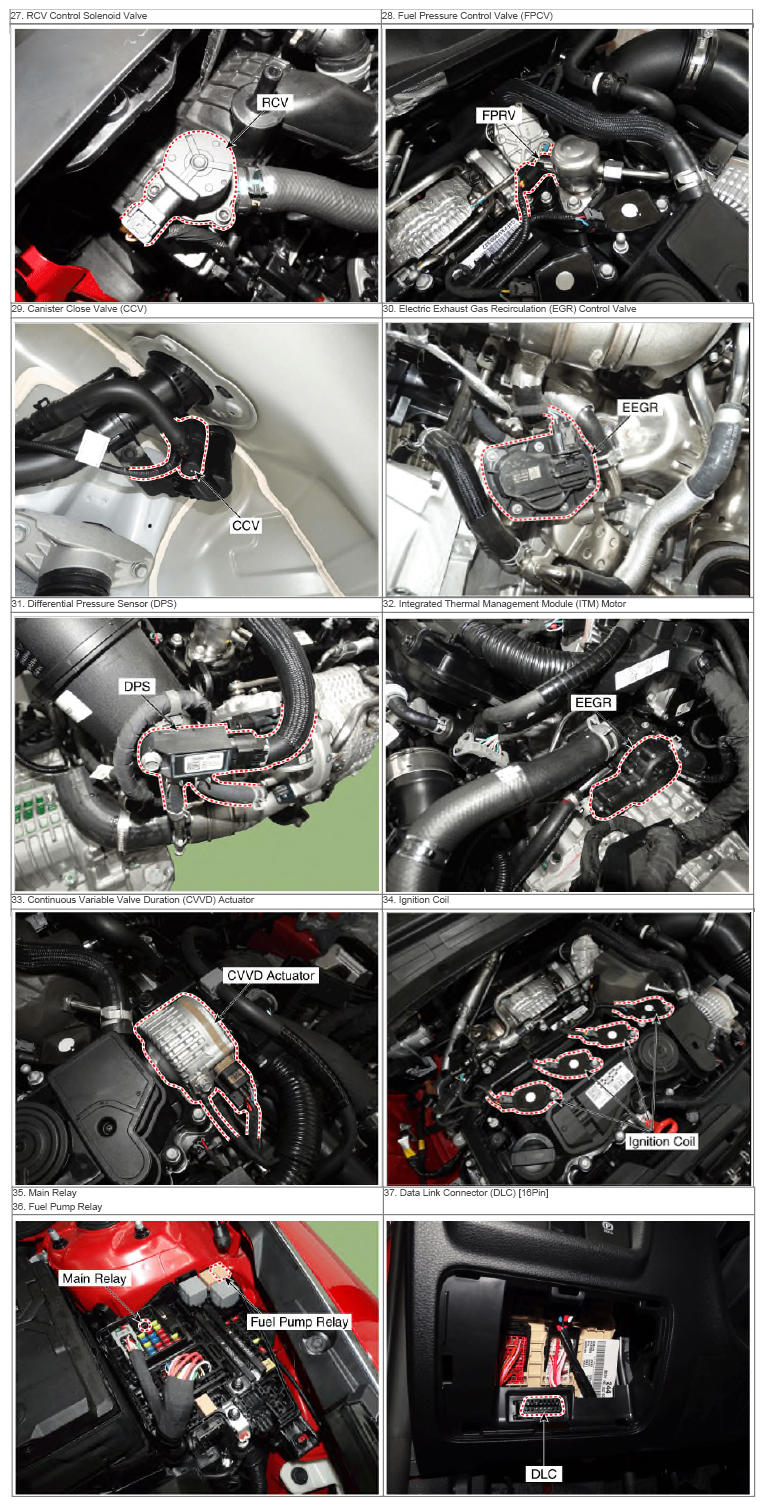

G14524863Courtesy of HYUNDAI MOTOR AMERICA
