Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Lift the vehicle.
  3. Remove the rear left wheel & tire and wheel house cover.
  4. Disconnect the CCV connector (A).
  5. Disconnect the vent hose (B) which connected to fuel tank air filter and CCV.
  6. Remove the fuel tank air filter after loosening mounting bolt (C).

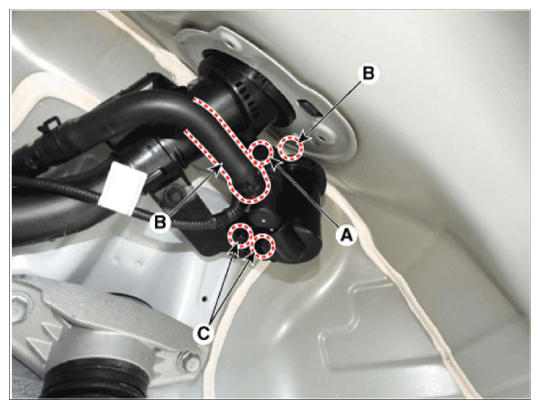

    G14525006Courtesy of HYUNDAI MOTOR AMERICA
  7. Lifting the fixed part (A) and then rotating CCV (B) 30 degrees in the direction of the arrow.
  8. Remove the CCV from the fuel tank air filter.

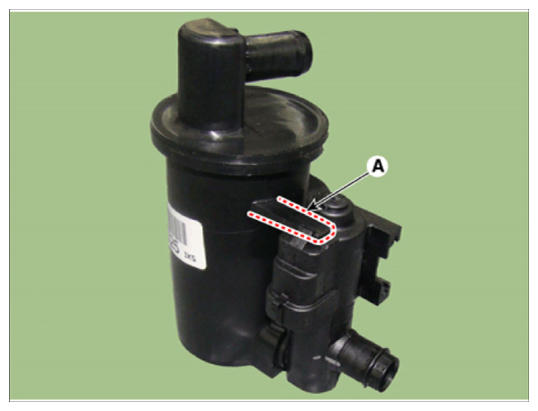

G14525007Courtesy of HYUNDAI MOTOR AMERICA

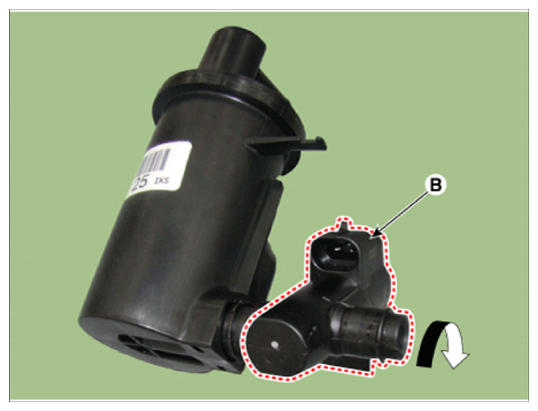

G14525008Courtesy of HYUNDAI MOTOR AMERICA
