Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Lift the vehicle.
- Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

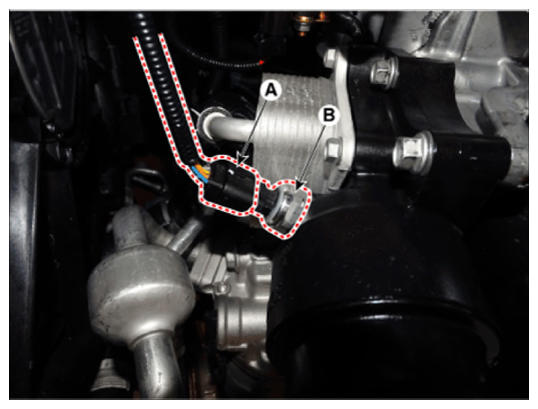

- Remove the oil pressure & oil temperature sensor after disconnect the oil pressure & oil temperature sensor connector (A).
Oil pressure & oil temperature sensor:
14.7 - 21.6 N.m (1.5 - 2.2 kgf.m, 10.8 - 15.9 lb.ft)
