Repair Procedures: Installation
WARNING: This page is about a different variant/trim than selected.
NOTE:
- When installing the CVVD actuator the shaft gear do not fit properly, rotate the CVVD actuator in both directions and installing it naturally.
(Do not impact when installing the component.)

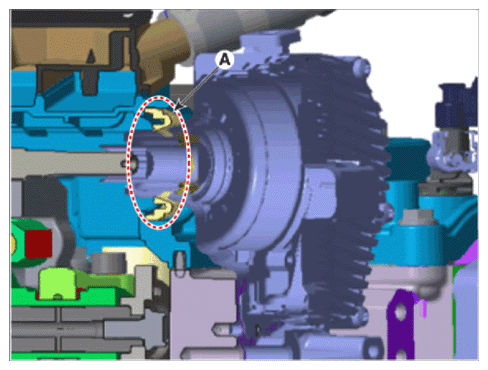

- Do not damage to the component when installing the cylinder head cover oil seal (A).
CAUTION:
- Install the component with the specified torques.
- Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
- Install in the reverse order of removal.
