Repair Procedures: Adjustment

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition switch OFF.
  2. Connect the diagnostic tool to Data Link Connector (DLC).
  3. Turn the ignition switch ON.
  4. Select "Vehicle, Model Year, Engine, System".
  5. Select "CVVD Intake Adaption".

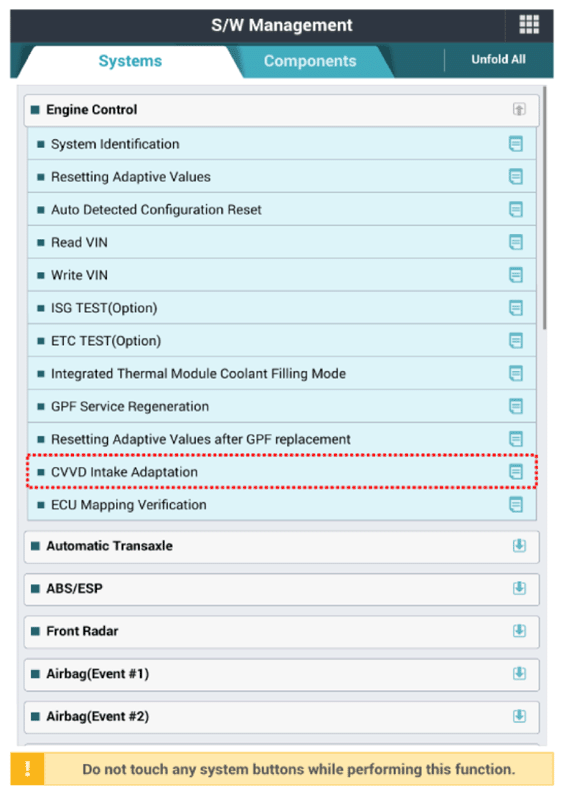

    G14525022Courtesy of HYUNDAI MOTOR AMERICA
  6. Perform the "CVVD Learning" refer to the diagnostic tool.
G14525023Courtesy of HYUNDAI MOTOR AMERICA

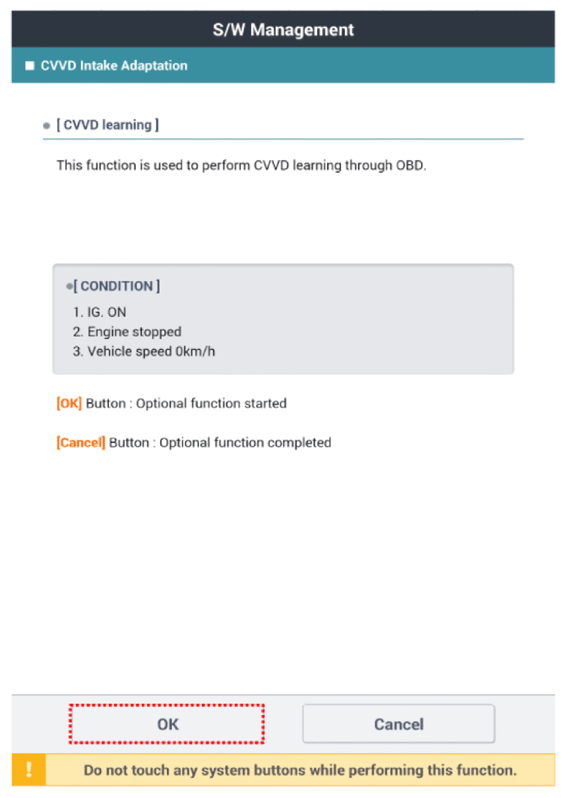

G14525024Courtesy of HYUNDAI MOTOR AMERICA
