Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition switch OFF, and then disconnect the battery negative (-) terminal.

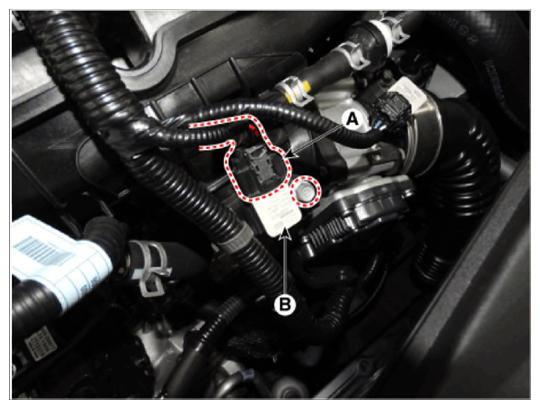

  2. Disconnect the boost pressure sensor (BPS) connector (A).
  3. Remove the sensor (B) after loosening the mounting bolt.
G14524900Courtesy of HYUNDAI MOTOR AMERICA
