Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the engine room under cover.

    (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

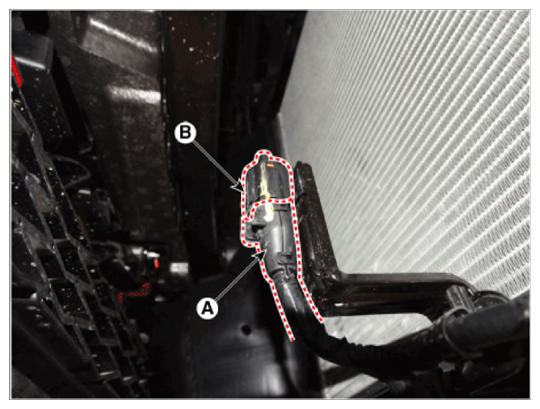

  3. Disconnect the ATS connector (A), and then removing the sensor (B).
G14524896Courtesy of HYUNDAI MOTOR AMERICA
