Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

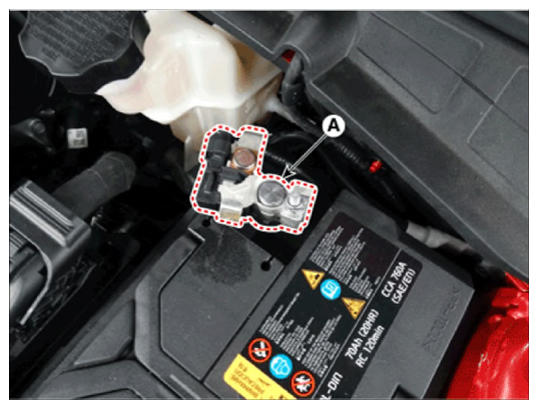

Disconnect the battery negative terminal.
Tightening torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 Ib-ft)

Courtesy of HYUNDAI MOTOR AMERICA

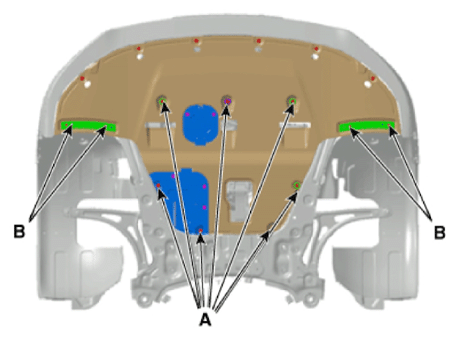

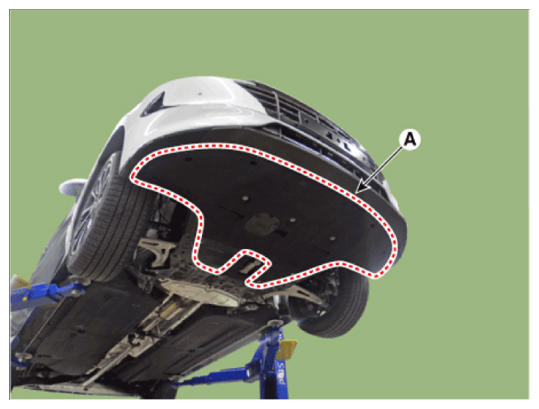

Remove the engine room under cover (A).
Tightening torque:

Bolt (A): 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

Bolt (B): 3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

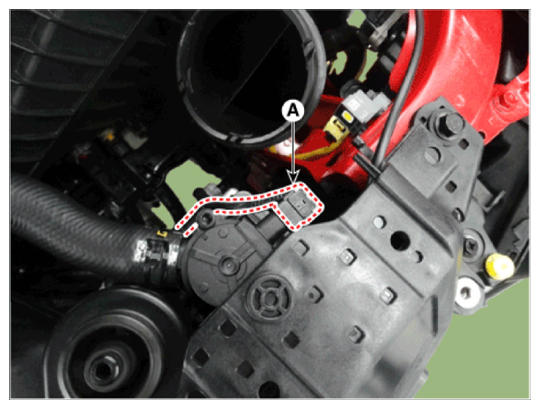

Disconnect the intake temperature sensor (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the front bumper cover.
(Refer to Body - "FRONT BUMPER COVER ")

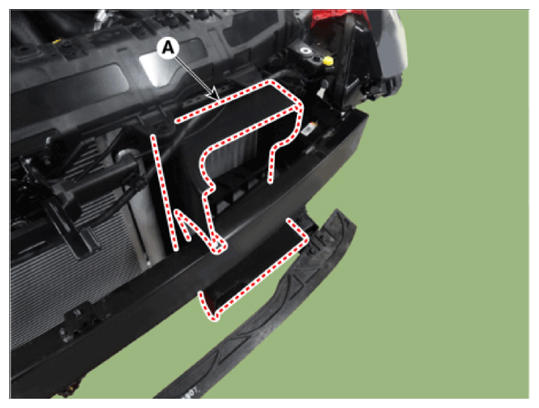

Remove the intercooler air guard (A).

Courtesy of HYUNDAI MOTOR AMERICA

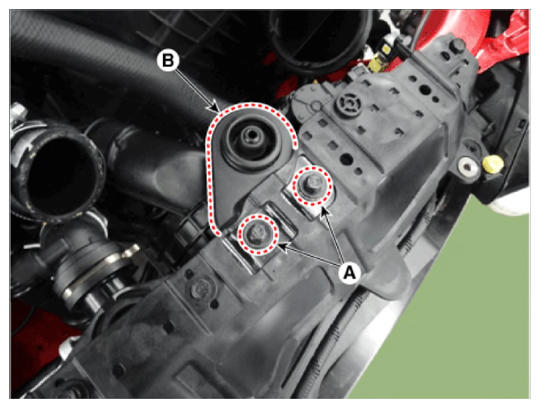

Loosen the mounting bolts (A), and then remove the mounting bracket (B) from intercooler.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

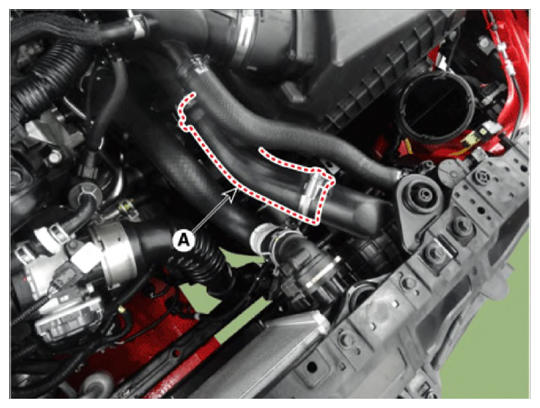

Disconnect the intercooler inlet hose (A).
Tightening torque:

Clamp: 4.9 - 6.9 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

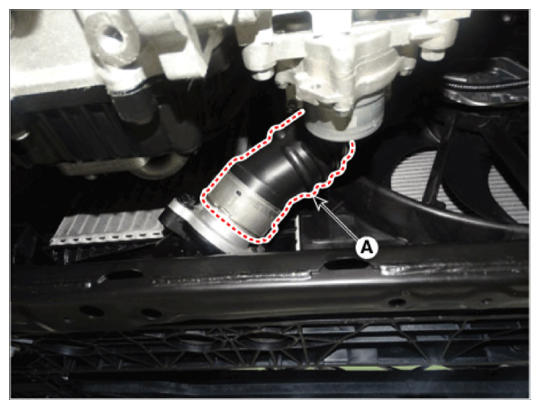

Disconnect the intercooler outlet hose (A).

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

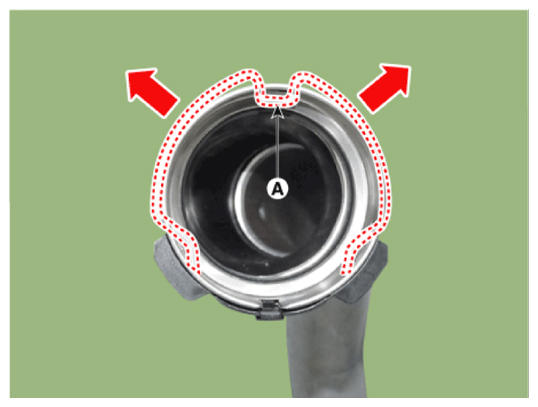

When disconnect the intercooler inlet hose, pull out the quick connector clamp (A) in the direction of the arrow as shown in the illustration below.

Courtesy of HYUNDAI MOTOR AMERICA

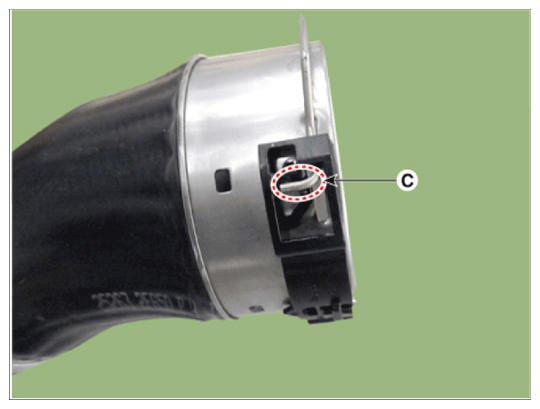

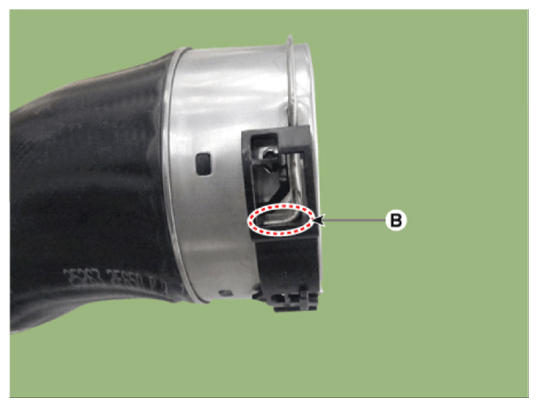

Move the quick connector clamp from position (B) to position (C) as shown in the illustration below and pull out the quick connector hose.

Courtesy of HYUNDAI MOTOR AMERICA

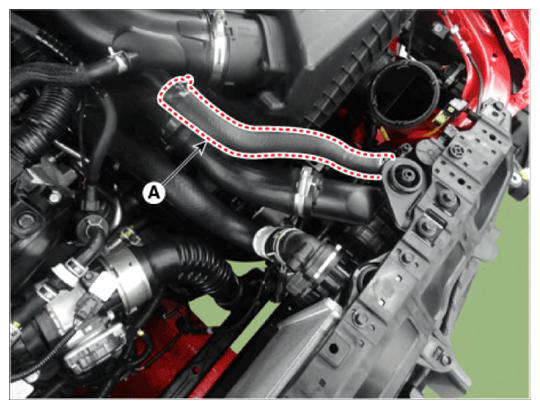

Disconnect the RCV hose (A).

Courtesy of HYUNDAI MOTOR AMERICA

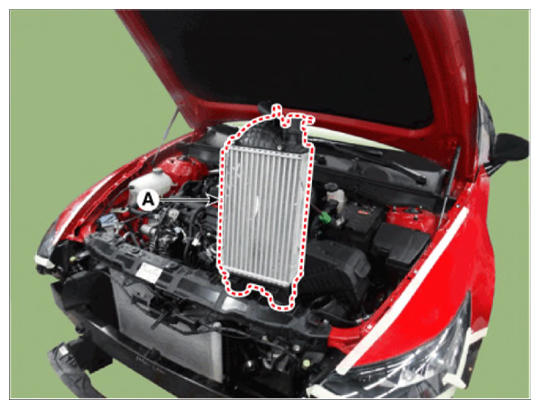

Remove the intercooler (A).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
