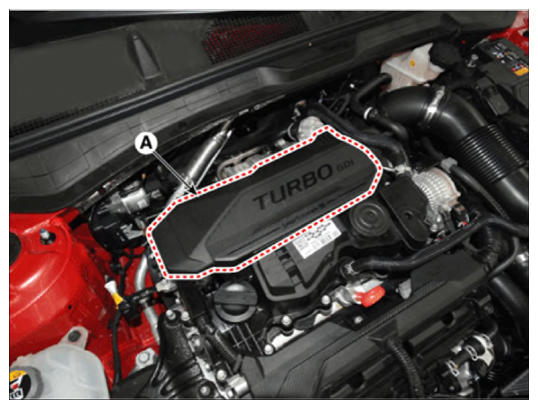

Intercooler Inlet Pipe

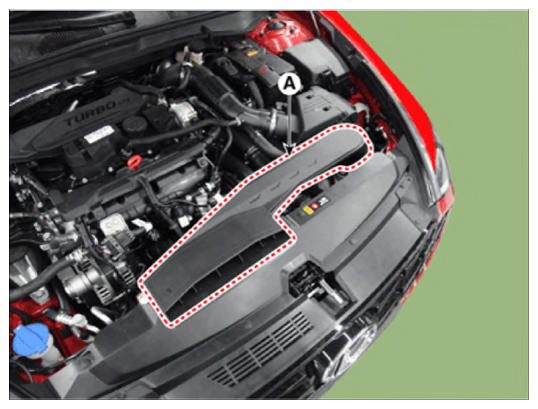

Tightening torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 Ib-ft)

Courtesy of HYUNDAI MOTOR AMERICA

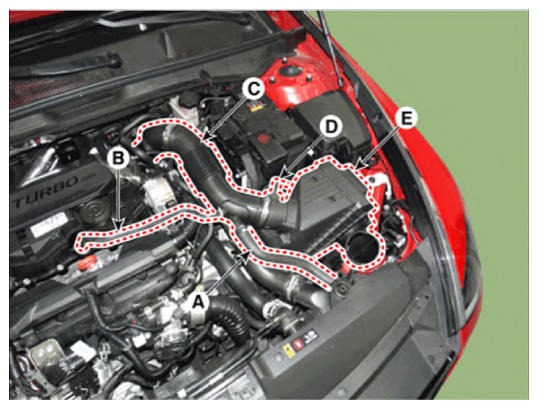

1. Disconnect the RCV hose (A).
2. Disconnect the breather hose (B).
3. Disconnect the intake air hose (C).
4. Disconnect the air flow sensor (AFS) connector (D).
5. Remove the air cleaner assembly (E).

   Tightening torque:

   Hose Clamp: 2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb-ft)

   Air Cleaner Assembly: 3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 Ib-ft)

   Courtesy of HYUNDAI MOTOR AMERICA

   NOTE:

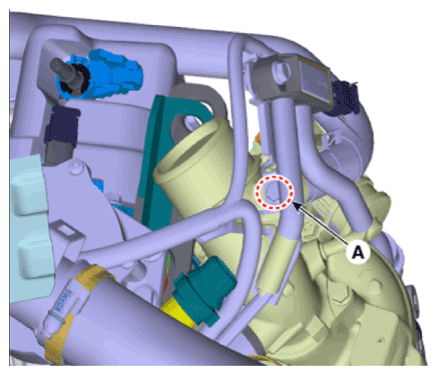

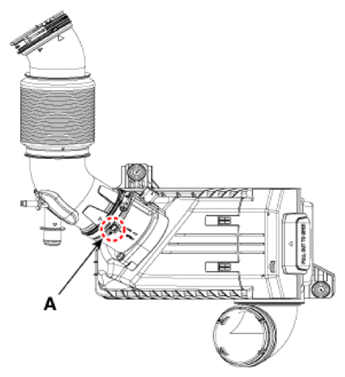

   • When install the intake hose, match the alignment marks (A).

     Courtesy of HYUNDAI MOTOR AMERICA

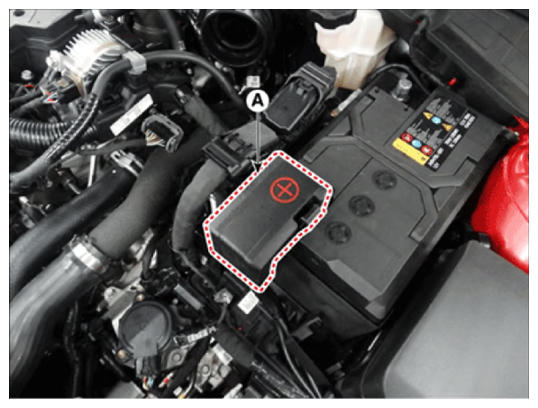

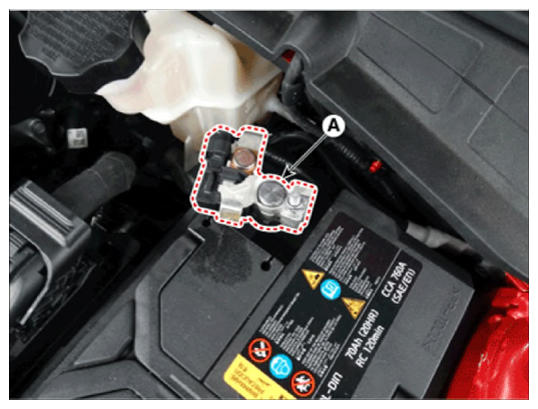

1. Open the "+" cable cover (A).

   Courtesy of HYUNDAI MOTOR AMERICA

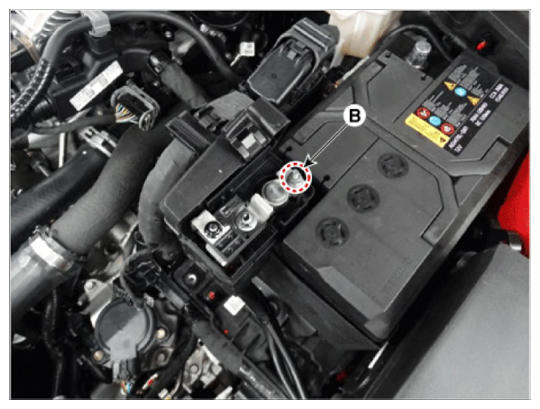

2. Loosen the "+" cable mounting nut (B).

   Tightening torque:

   7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

   Courtesy of HYUNDAI MOTOR AMERICA

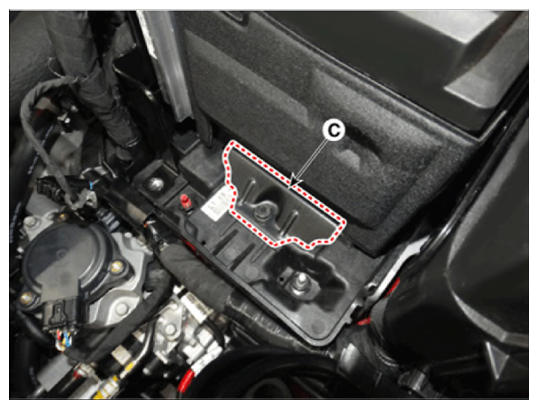

3. Remove the battery mounting bracket (C), and then remove the battery.

   Tightening torque:

   18.6 - 29.4 N.m (1.9 - 3.0 kgf.m, 13.7 - 21.7 lb-ft)

   Courtesy of HYUNDAI MOTOR AMERICA

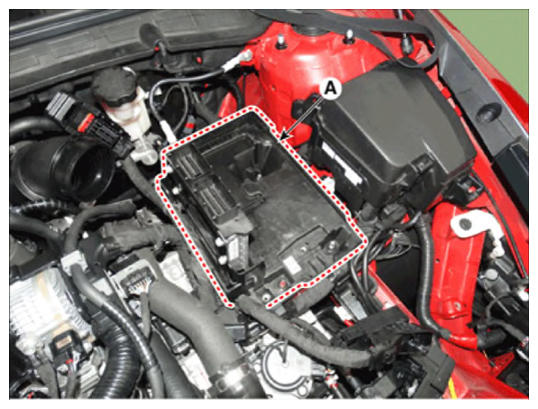

Tightening torque:

18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

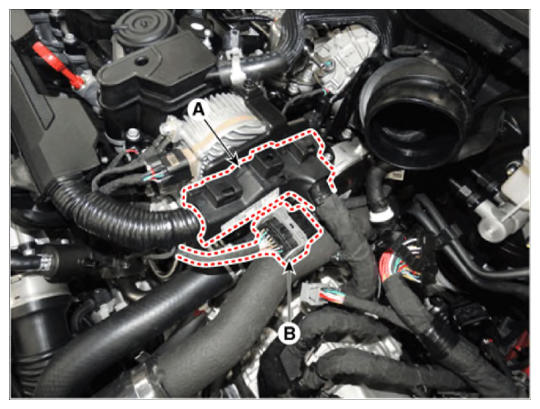

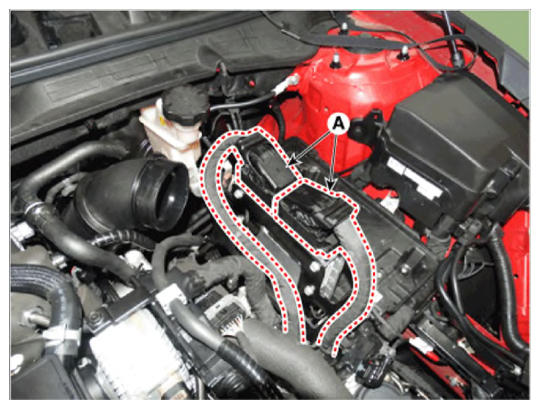

1. Disconnect the main wiring (A), connector (B) from intercooler inlet pipe.

   Courtesy of HYUNDAI MOTOR AMERICA

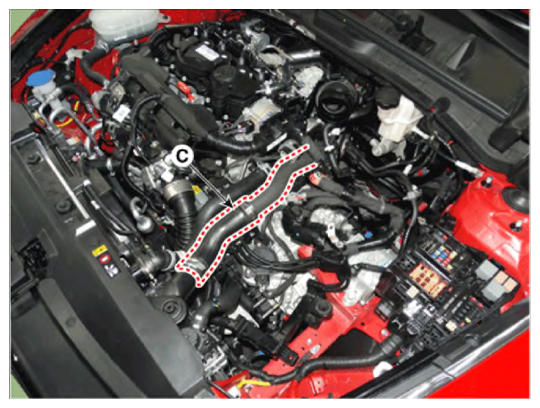

2. Remove the intercooler inlet hose & pipe (C).

   Tightening torque:

   Mounting Blot: 18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)

   Clamp Bolt: 4.9 - 6.9 N.m 0.5 - 0.7 kgf.m, 3.6 - 5.1 lb-ft)

   Courtesy of HYUNDAI MOTOR AMERICA

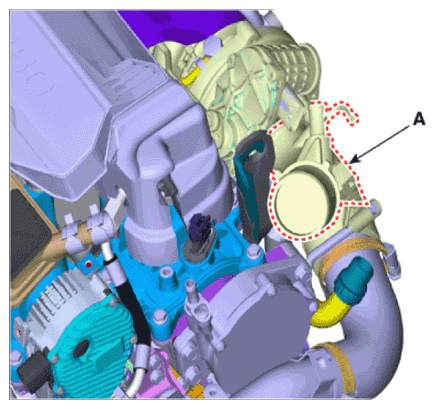

Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

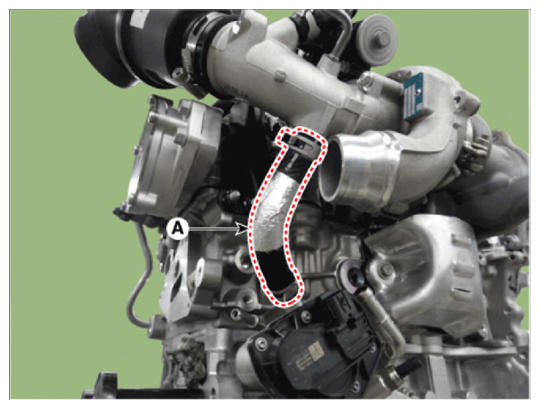

Tightening torque:

18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
