Removal And Installation

WARNING: This page is about a different variant/trim than selected.

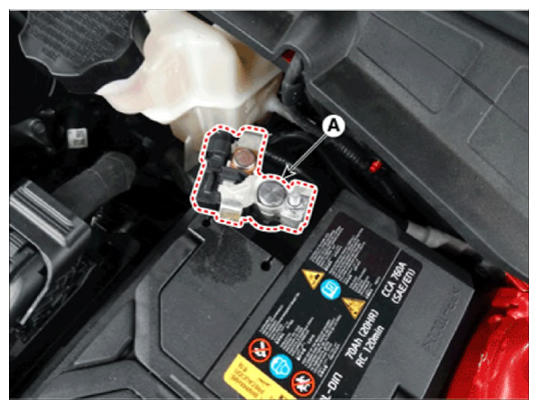

Disconnect the battery negative terminal.
Tightening torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 Ib-ft)

Courtesy of HYUNDAI MOTOR AMERICA

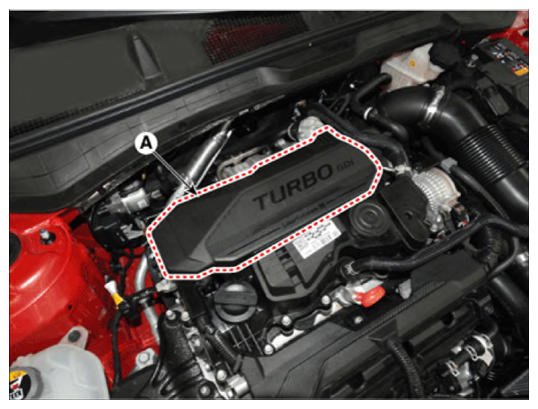

Remove the engine cover.

Courtesy of HYUNDAI MOTOR AMERICA

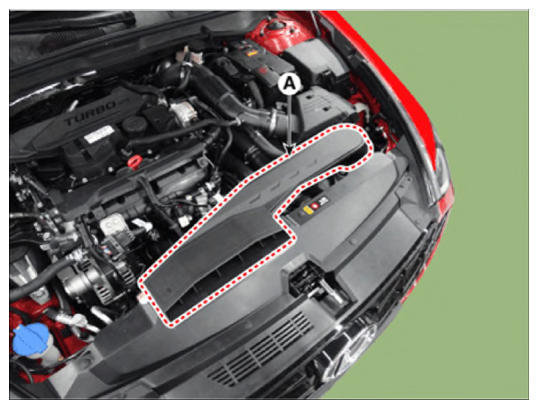

Remove the air duct (A).

Courtesy of HYUNDAI MOTOR AMERICA

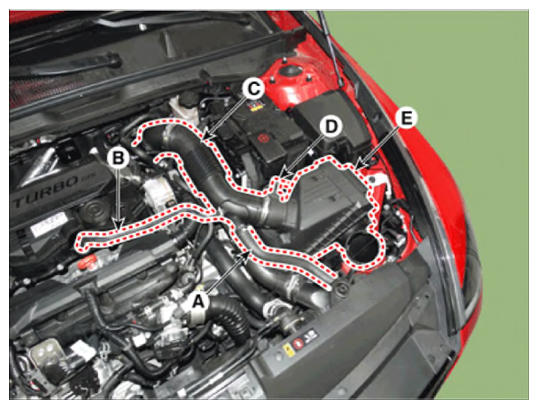

Remove the air cleaner assembly.

Disconnect the RCV hose (A).
Disconnect the breather hose (B).
Disconnect the intake air hose (C).
Disconnect the air flow sensor (AFS) connector (D).

Remove the air cleaner assembly (E).

Tightening torque:

Hose Clamp: 2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb-ft)

Air Cleaner Assembly: 3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 Ib-ft)

G14524534

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

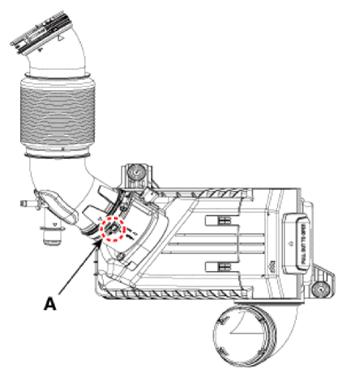

Align the marks (A) of the air intake hose.

G14524535

Courtesy of HYUNDAI MOTOR AMERICA

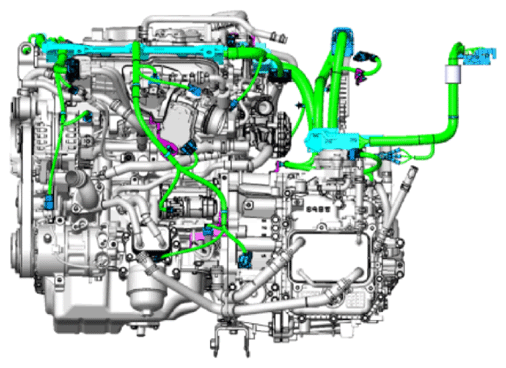

Remove the engine wire harness connectors and wire harness clamps from cylinder head and the intake manifold.

Courtesy of HYUNDAI MOTOR AMERICA

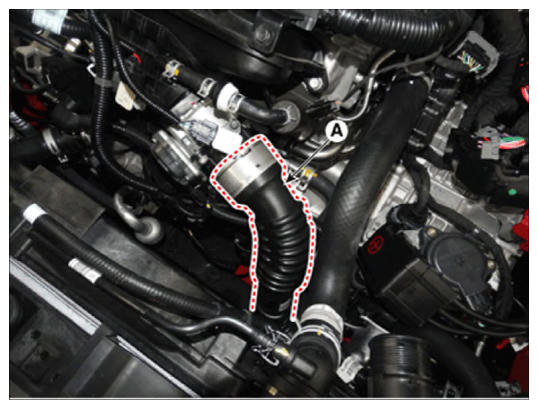

Remove the intercooler outlet hose (A).

G14524537

Courtesy of HYUNDAI MOTOR AMERICA

Information

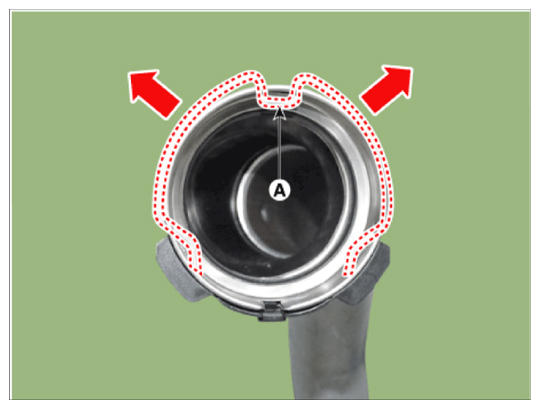

When disconnect the intercooler inlet hose, pull out the quick connector clamp (A) in the direction of the arrow as shown in the illustration below.

G14524538

Courtesy of HYUNDAI MOTOR AMERICA

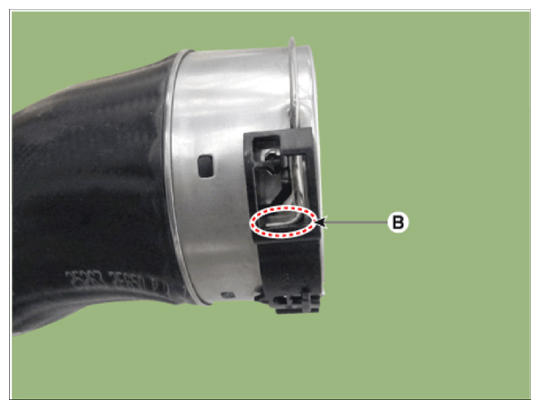

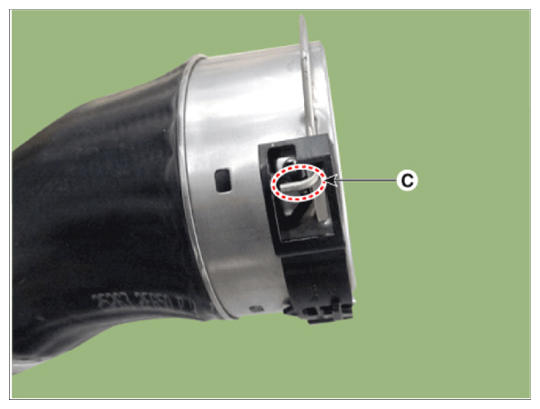

Move the quick connector clamp from position (B) to position (C) as shown in the illustration below and pull out the quick connector hose.

G14524539

Courtesy of HYUNDAI MOTOR AMERICA

G14524540

Courtesy of HYUNDAI MOTOR AMERICA

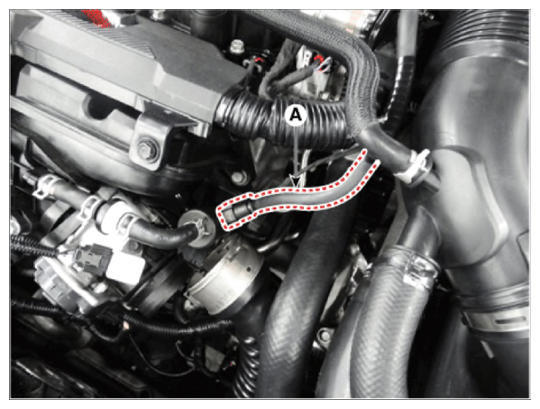

Remove the Purge control solenoid valve (PCSV) hose (A).

Courtesy of HYUNDAI MOTOR AMERICA

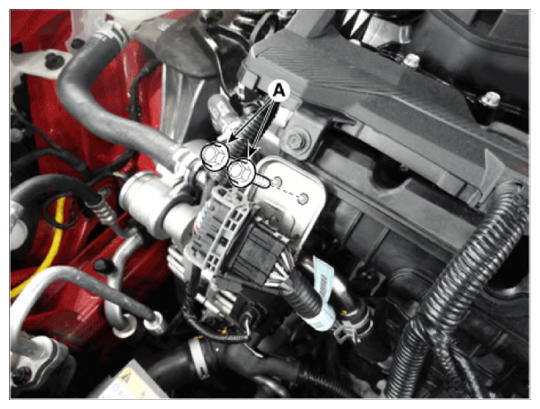

Remove the water return hose & pipe bracket bolt (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

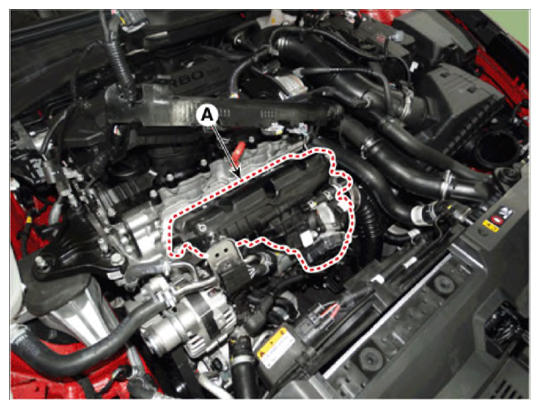

Remove the Intake Manifold (A).
Tightening torque:

18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- When installing, replace with new gaskets.

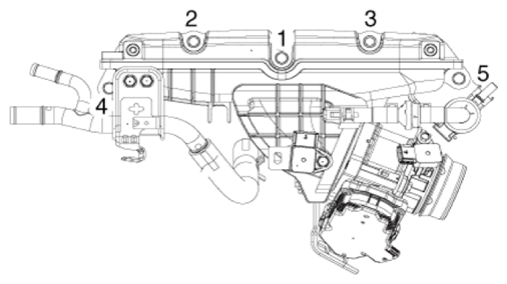

  When installing the intake manifold, tighten sequence shown.

  Fig 1: Intake Manifold Bolts Tightening Sequence
  Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
