Air Cleaner Element Replacement
WARNING: This page is about a different variant/trim than selected.

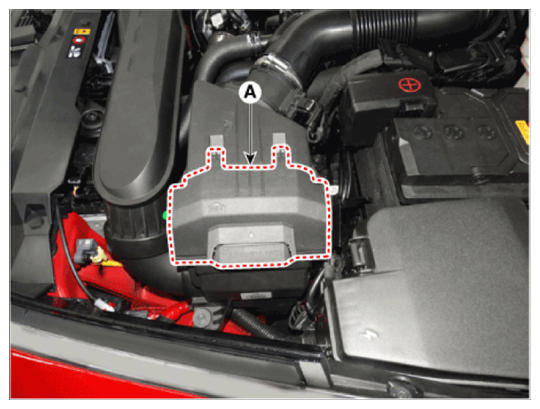

- Open the air cleaner element cover by lifting down the air cleaner element cover handle (A).

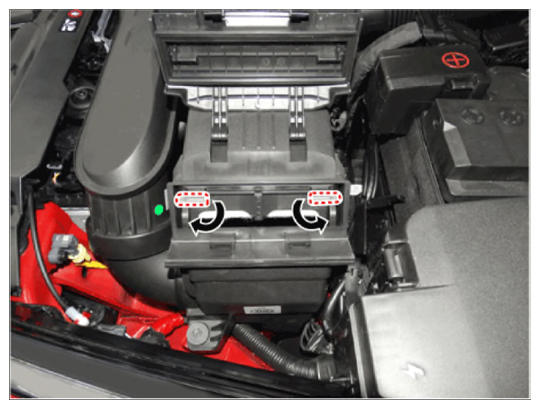

- Unlock the air cleaner element camshaft (A) by turning in the direction of arrow.

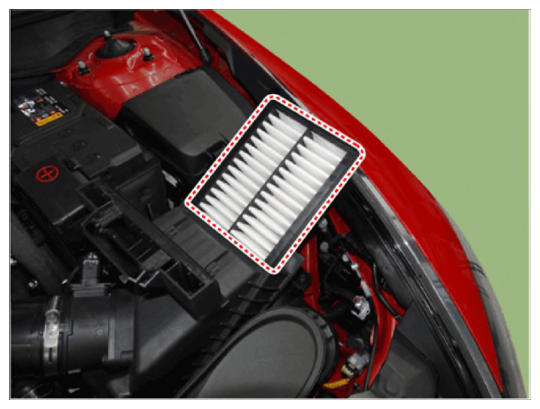

- Replace the air cleaner element (A) with a new one.NOTE:
- If there are foreign substances inside the air cleaner assembly, wipe the inside of the air cleaner assembly and then replace the air cleaner element.
