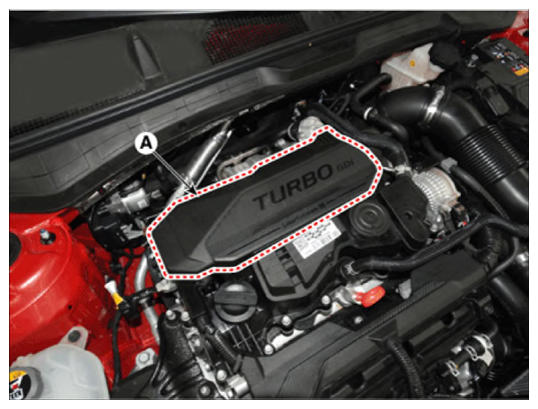

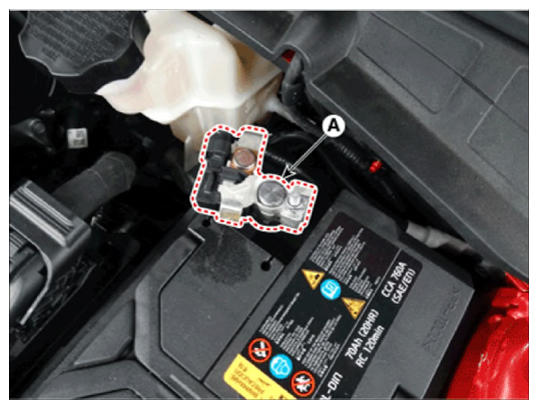

Air Cleaner Assembly

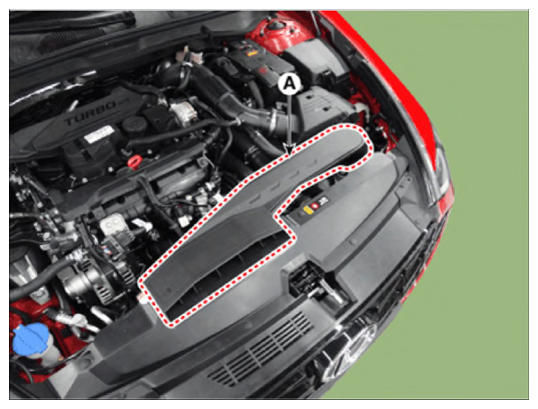

Tightening torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 Ib-ft)

Courtesy of HYUNDAI MOTOR AMERICA

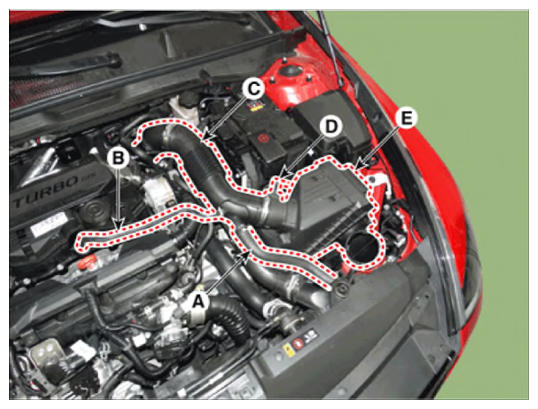

1. Disconnect the RCV hose (A).
2. Disconnect the breather hose (B).
3. Disconnect the intake air hose (C).
4. Disconnect the air flow sensor (AFS) connector (D).
5. Remove the air cleaner assembly (E).

   Tightening torque:

   Hose Clamp: 2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb-ft)

   Air Cleaner Assembly: 7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

   Courtesy of HYUNDAI MOTOR AMERICA

   NOTE:

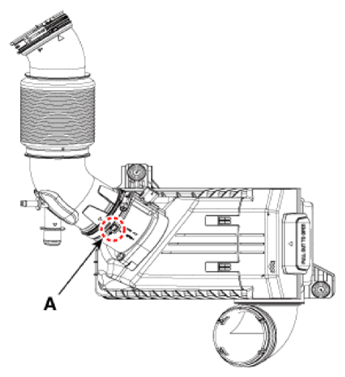

   • Align the marks (A) of the air intake hose.

     Courtesy of HYUNDAI MOTOR AMERICA
