Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

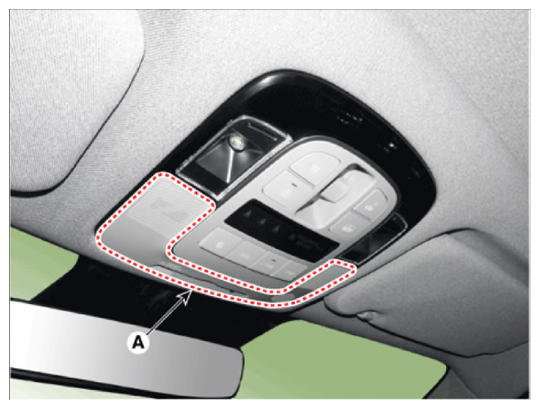

  2. Remove the overhead console cover (A).
    G14527146Courtesy of HYUNDAI MOTOR AMERICA

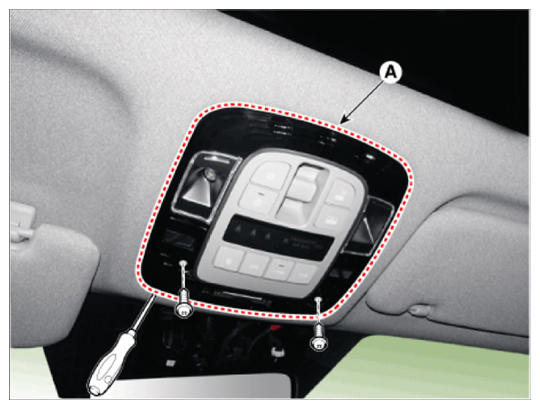

  3. Loosen the mounting screws and then remove the overhead console (A).
    G14527147Courtesy of HYUNDAI MOTOR AMERICA

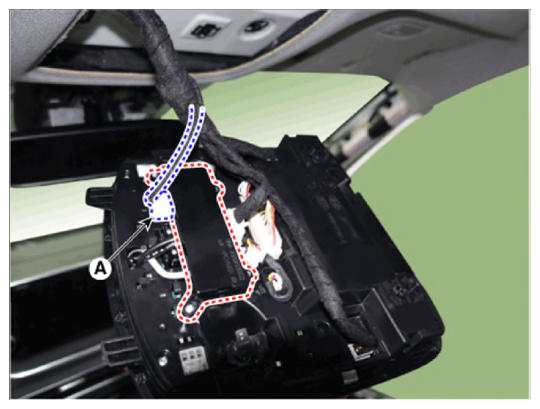

  4. Disconnect the rear occupant alert connector and then remove the occupant alert (A).
    G14527148Courtesy of HYUNDAI MOTOR AMERICA
