Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the cluster fascia panel.

    (Refer to Body - "CLUSTER FASCIA PANEL ")

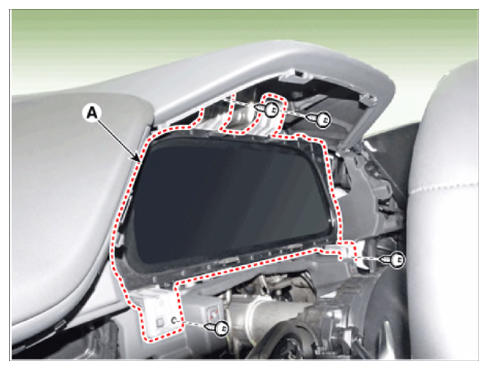

  3. Remove the cluster (A) from the housing after removing screws.
    G14526844Courtesy of HYUNDAI MOTOR AMERICA

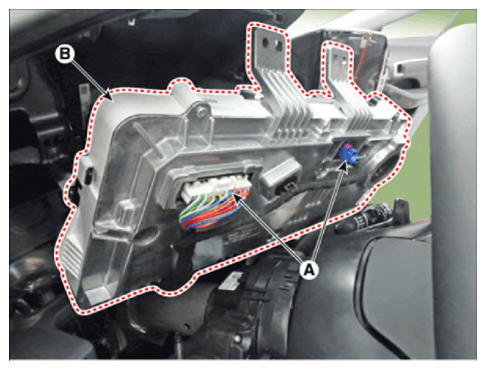

  4. Disconnect the cluster connector (A) and then remove the cluster (B).
    G14526845Courtesy of HYUNDAI MOTOR AMERICA
