7 Inch TFT LCD

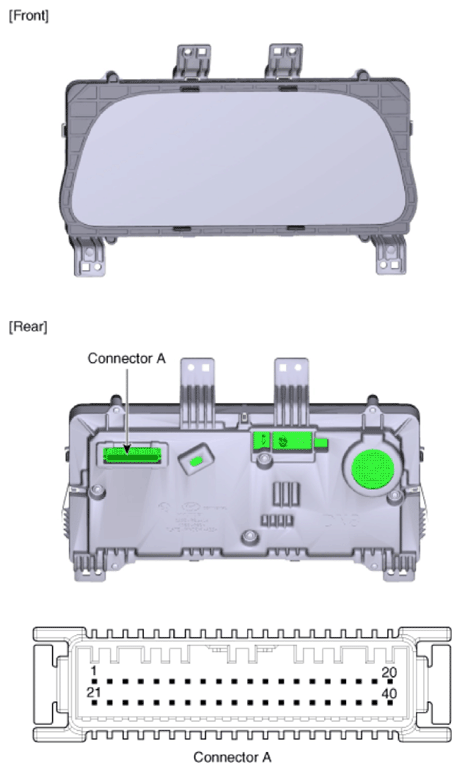

CONNECTOR PIN INFORMATION DESCRIPTION
| No | Connector A | No | Connector A |
|---|---|---|---|
| 1 | Ground | 21 | Trip switch (-) |
| 2 | Illumination (-) | 22 | Trip switch 1 (+) |
| 3 | Rheostat switch (Down)_Input | 23 | Trip switch 2 (+) |
| 4 | Rheostat switch (Up)_Input | 24 | Driver mode switch (Up) |
| 5 | Detent | 25 | Driver mode switch (Down) |
| 6 | - | 26 | - |
| 7 | - | 27 | - |
| 8 | - | 28 | Active ECO_input switch |
| 9 | - | 29 | M-CAN (Low) |
| 10 | - | 30 | M-CAN (High) |
| 11 | - | 31 | Engine Run State_Output |
| 12 | Vehicle speed_Output | 32 | C-CAN (High) |
| 13 | Alternator_Input | 33 | C-CAN (Low) |
| 14 | Fuel sender (+)_Input | 34 | - |
| 15 | - | 35 | - |
| 16 | Fuel sender (-)_Input | 36 | - |
| 17 | - | 37 | Ground |
| 18 | - | 38 | - |
| 19 | Oil press switch (-)_Input | 39 | IGN 1 |
| 20 | - | 40 | Battery (+) |
