Wireless Power Charger

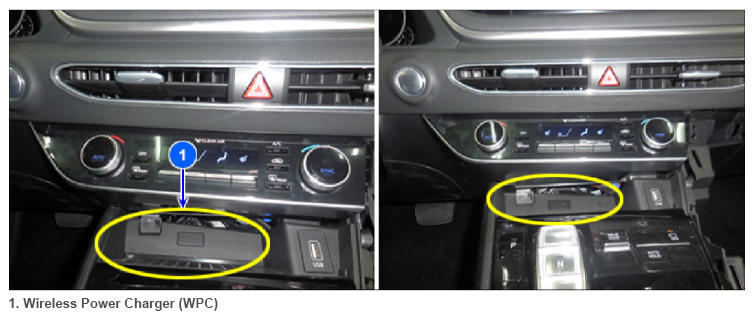

G14532550Courtesy of HYUNDAI MOTOR AMERICA

Wireless Power Charger (WPC) uses a magnetic induction method. Induction chargers typically use an induction coil to create an alternating electromagnetic field from within a charging base station, and a second induction coil in the portable device takes power from the electromagnetic field and converts it back into electric current to charge the battery.
