Inspect the Stop Lamp Circuit

Connect probe to each terminal wire and confirm oscilloscope waveform.

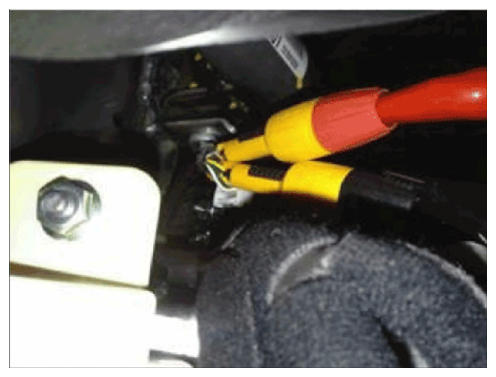

[Stop Lamp Switch Input/Output]

G14526104Courtesy of HYUNDAI MOTOR AMERICA

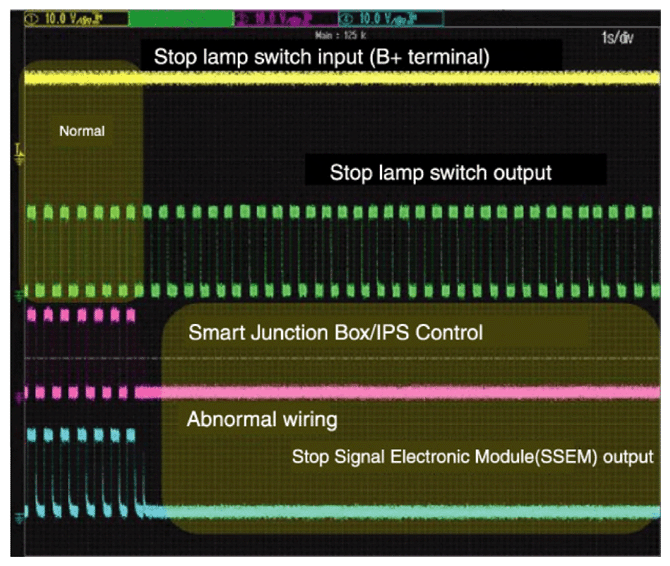

[Oscilloscope Waveform Screen]

G14526105Courtesy of HYUNDAI MOTOR AMERICA
