Repair Procedures: Removal

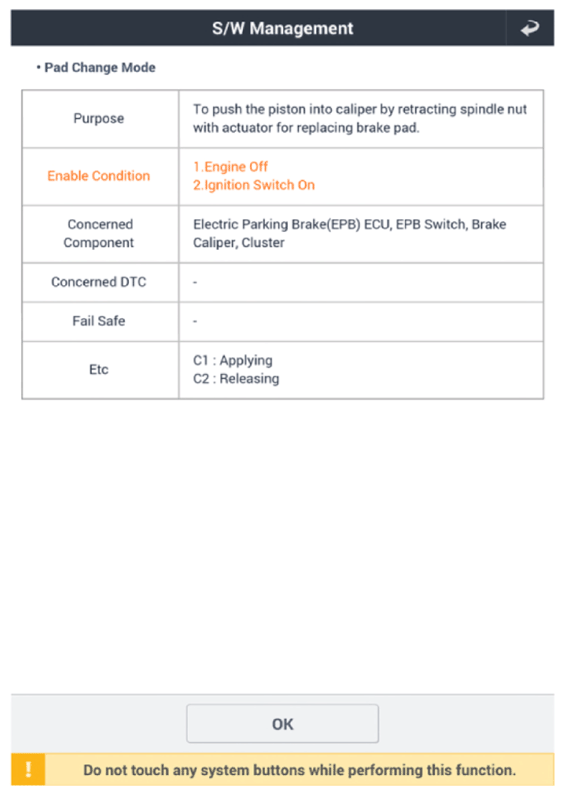

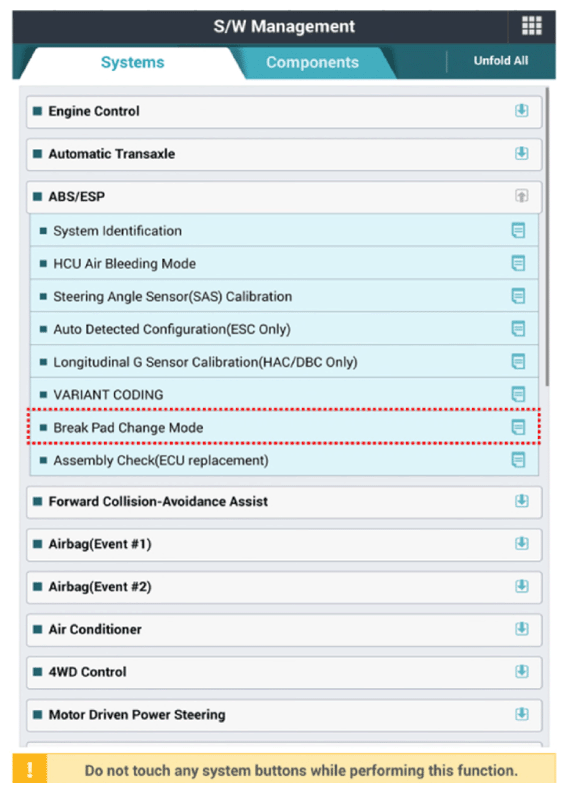

- Before removing the rear caliper, perform
"Brake Pad Replacement Mode" using the GDS.

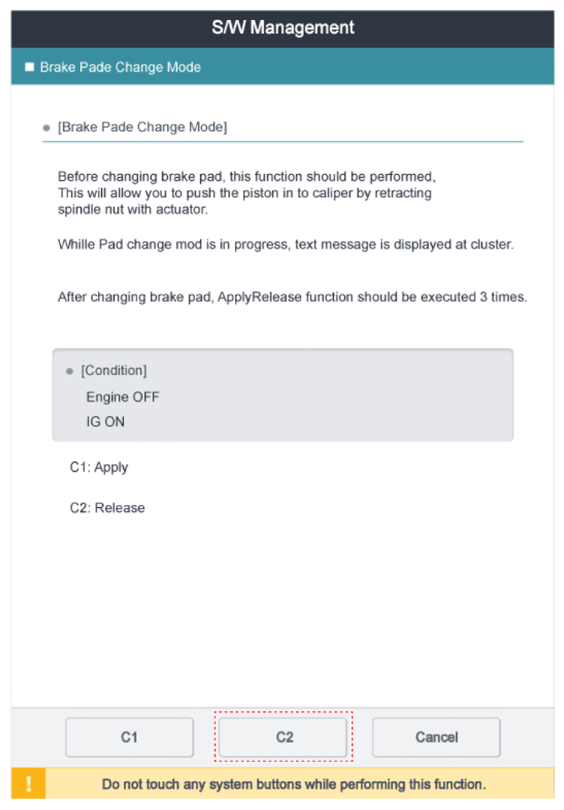

- Select C2 (Release) on the screen below.
- Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.

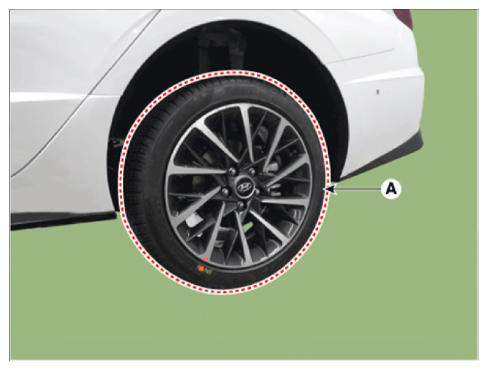

- Remove the rear wheel and tire (A) from the rear hub.
Tightening torque:
107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)
NOTE:- Be careful not to damage the hub bolts when removing the rear wheel and tire (A).

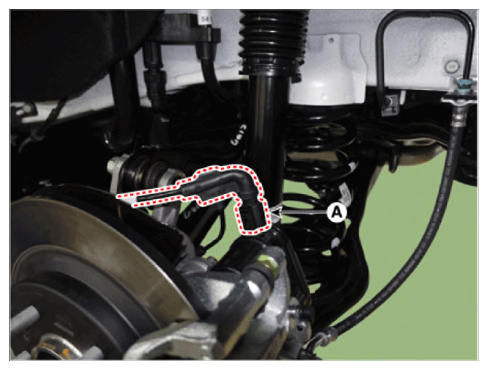

- Disconnect the EPB actuator connector (A).

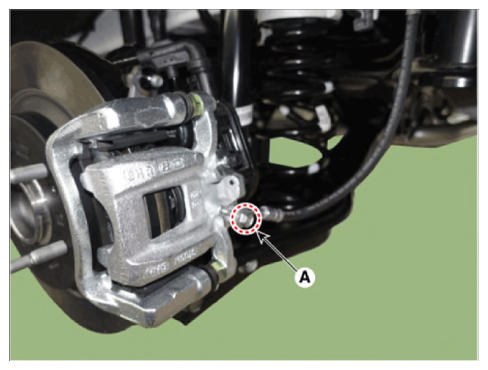

- Remove the hose after loosening the brake hose bolt (A) from the caliper.
Tightening torque:
24.5 - 29.4 N.m (2.5 - 3.0 kgf.m, 18.1 - 21.7 lb-ft)

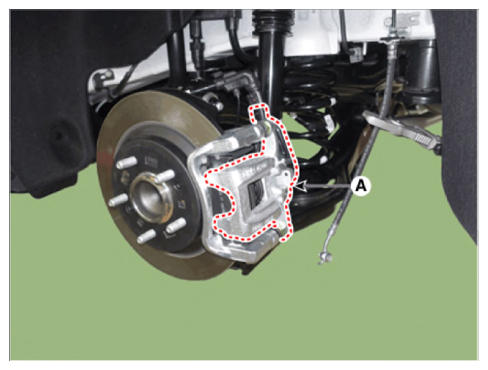

- Remove the caliper body (A) after loosening the guide rod bolt.
Tightening torque:
21.6 - 31.4 N.m (2.2 - 3.2 kgf.m, 15.9 - 23.1 lb-ft)

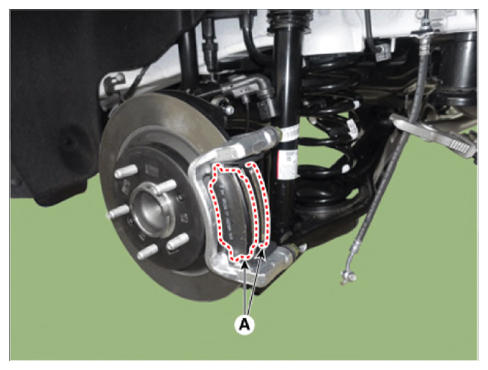

- Remove the brake pad (A).

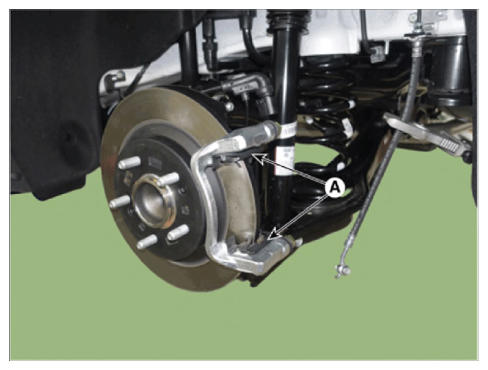

- Remove the pad retainer (A).

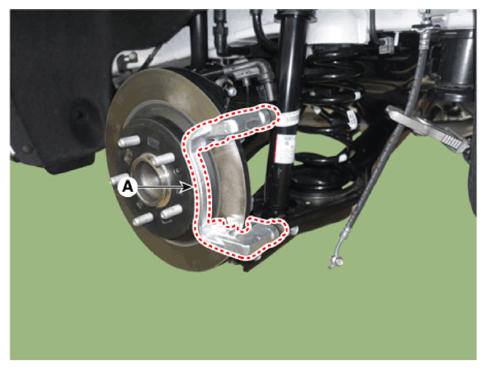

- Remove the caliper carrier (A) after loosening the caliper mounting bolt.
Tightening torque:
78.5 - 98.1 N.m (8.0 - 10.0 kgf.m, 57.9 - 72.3 lb-ft)

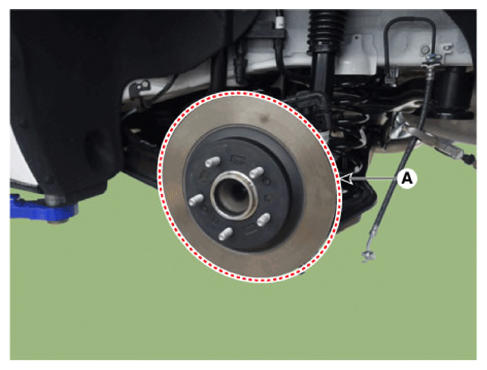

- Remove the rear brake disc (A) after loosening the screw.
Tightening torque:
4.9 - 5.9 N.m (0.5 - 0.6 kgf.m, 3.6 - 4.3 lb-ft)
