Repair Procedures: Removal
CAUTION:
- Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
(Refer to General Information - "LIFT AND SUPPORT POINTS ")
- Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
- Remove the front wheel and tire (A) from front hub.
Tightening torque:
107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)
NOTE:- Be careful not to damage the hub bolts when removing the front wheel and tire (A).

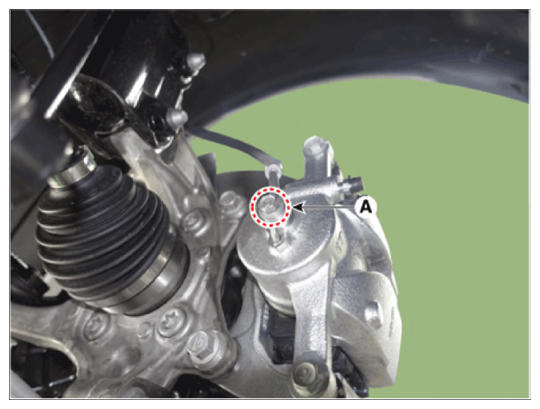

- Remove the hose after loosening the brake hose bolt (A) from the caliper.
Tightening torque:
24.5 - 29.4 N.m (2.5 - 3.0 kgf.m, 18.1 - 21.7 lb-ft)
- Remove the caliper body (A) by loosening the guided rod bolt.
Tightening torque:
21.6 - 31.4 N.m (2.2 - 3.2 kgf.m, 15.9 - 23.1 lb-ft)
- Remove the brake pad (A).
- Remove the pad retainer (A).
- Remove the caliper carrier (A) by loosening the caliper mounting bolts.
Tightening torque:
78.5 - 98.1 N.m (8.0 - 10.0 kgf.m, 57.9 - 72.3 lb-ft)
- Remove the front brake disc (A) by loosening the screws.
Tightening torque:
4.9 - 5.8 N.m (0.5 - 0.6 kgf.m, 3.6 - 4.3 lb-ft)
