Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.

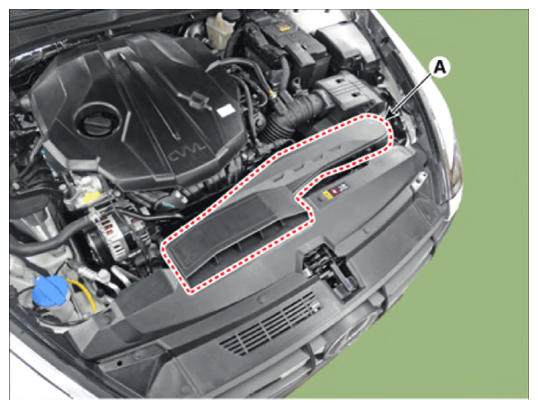

  2. Remove the air duct (A).
    G14525996Courtesy of HYUNDAI MOTOR AMERICA

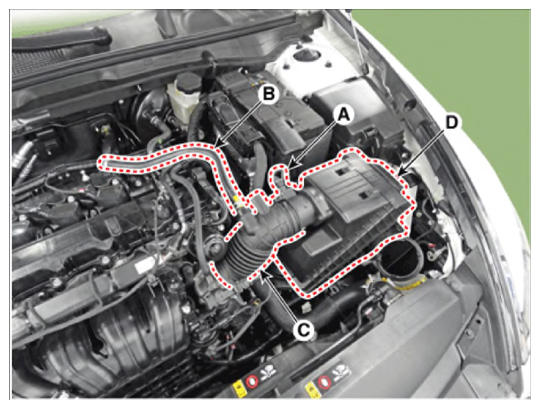

  3. Remove the air cleaner assembly.
    1. Disconnect the Mass Air Flow Sensor (MAFS) connector (A).
    2. Separate the bleeder hose (B).
    3. Separate the intake hose (C).
    4. Remove the air cleaner assembly (D).

      Tightening torque:

      Intake hose clamp: 2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb-ft)

      Air cleaner mounting bolt: 7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

      G14525997Courtesy of HYUNDAI MOTOR AMERICA

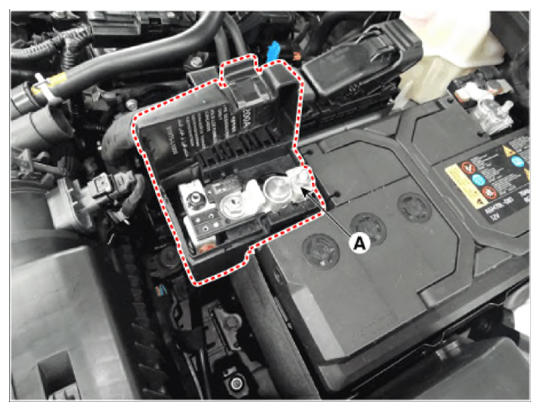

  4. Disconnect the battery (+) terminal (A).

    Battery (+) terminal mounting nut:

    7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

    G14525998Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the battery bracket (A) and the battery (B).

    Battery bracket:

    9.8 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 Ib-ft)

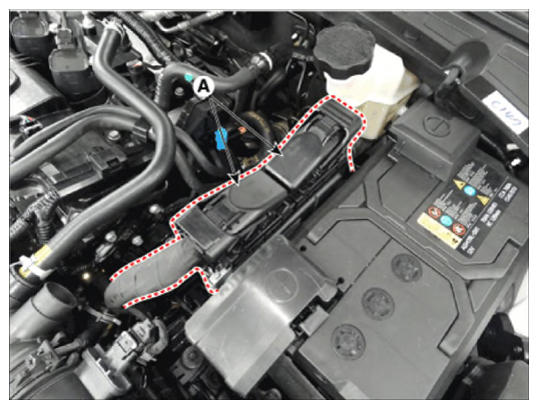

  6. Disconnect the ECM connector (A).
    G14525999Courtesy of HYUNDAI MOTOR AMERICA

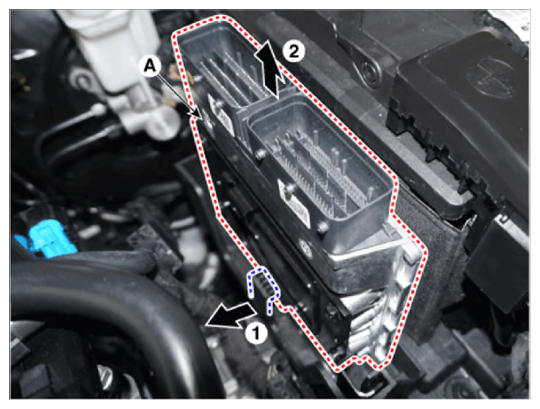

  7. Remove the TCM (A) after pull the clip.
    G14526000Courtesy of HYUNDAI MOTOR AMERICA

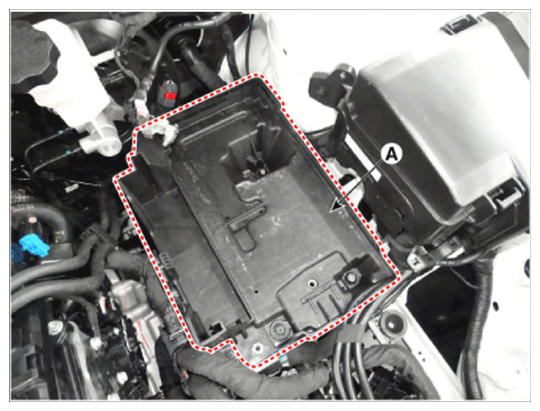

  8. Loosen the mounting bolts and then removing the battery tray (A).

    Battery tray:

    9.8 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 Ib-ft)

    G14526001Courtesy of HYUNDAI MOTOR AMERICA

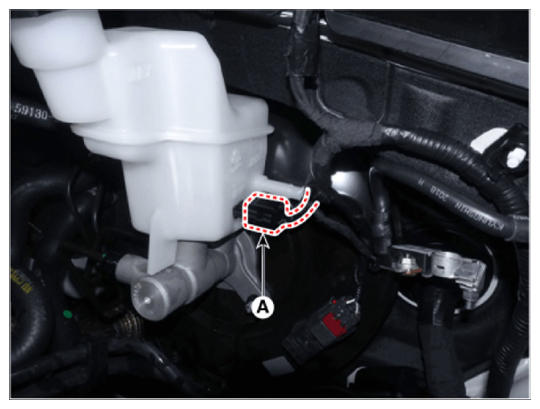

  9. Disconnect the brake fluid level sensor connector (A).
    G14526002Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Do not spill brake fluid on the vehicle, it may damage the paint; if brake fluid does contact the paint, wash it off immediately with water.
    • Make sure no dirt or other foreign matter is allowed to contaminate the brake fluid.

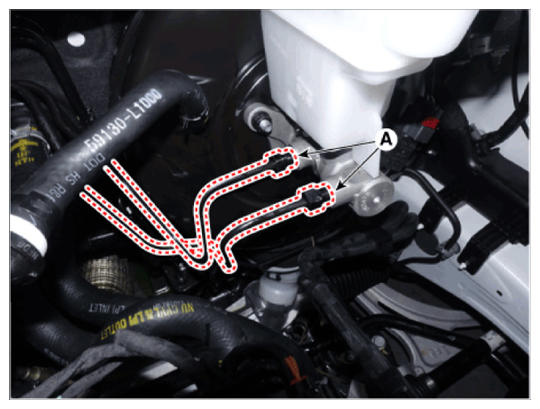

  10. Separate the brake tube (A) from the master cylinder by loosening the tube flare nut.
    NOTE:
    • When removing the brake tube, be careful not to damage or tear the tap.
    • When mounting, keep in mind the position of the brake tube and mount the flare nut to the correct position.

    Tightening torque:

    18.6 - 22.6 N.m (1.9 - 2.3 kgf.m, 13.7 - 16.6 lb-ft)

    G14526003Courtesy of HYUNDAI MOTOR AMERICA

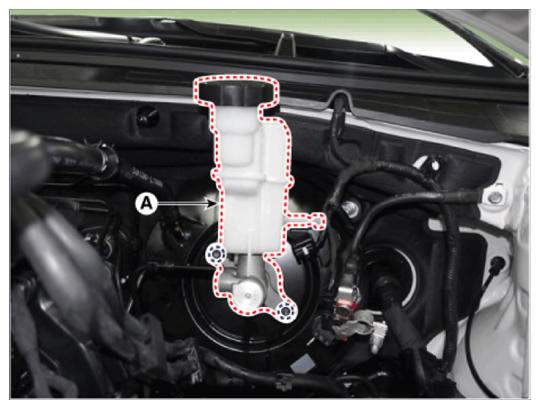

  11. Remove the master cylinder (A) after loosening the master cylinder nuts.

    Tightening torque:

    9.8 - 15.7 N.m (1.0 - 1.6 kgf.m, 7.2 - 11.6 lb-ft)

    G14526004Courtesy of HYUNDAI MOTOR AMERICA

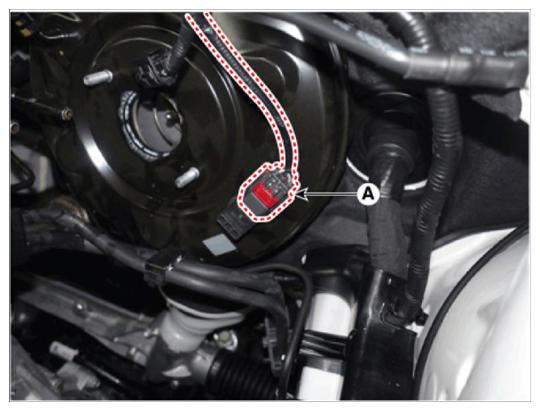

  12. Disconnect the brake booster vacuum pressure sensor connector (A).
    G14526005Courtesy of HYUNDAI MOTOR AMERICA

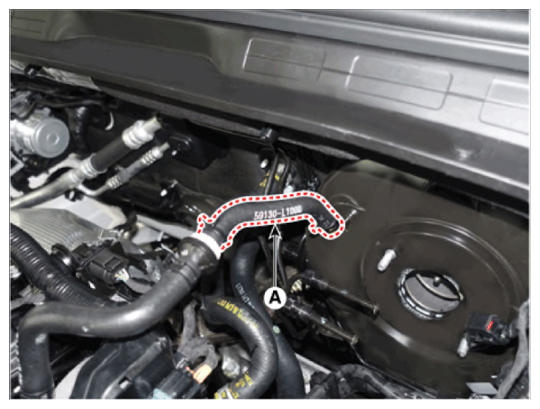

  13. Remove the fixing clip and the vacuum hose (A) from the brake booster.
    G14526006Courtesy of HYUNDAI MOTOR AMERICA

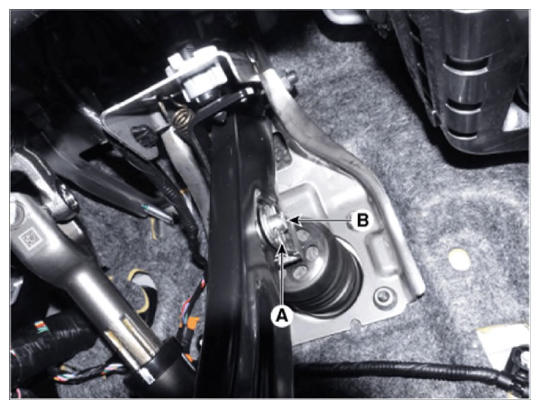

  14. Remove the snap pin (A) and the clevis pin (B).
    G14526007Courtesy of HYUNDAI MOTOR AMERICA

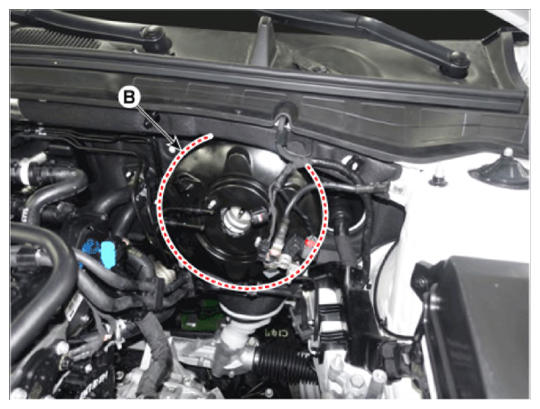

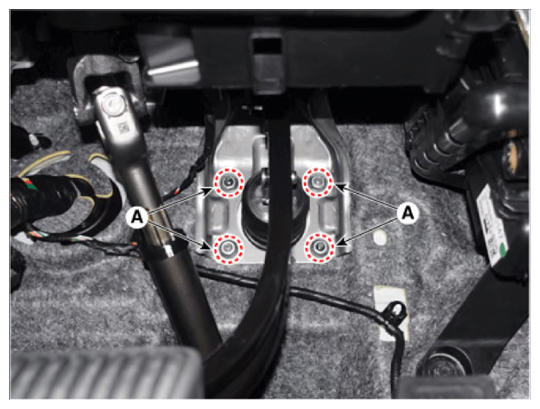

  15. Loosen the fixed nut (A) and then removing the brake booster (B).

    Tightening torque:

    16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb-ft)

    G14526008Courtesy of HYUNDAI MOTOR AMERICA
    G14526009Courtesy of HYUNDAI MOTOR AMERICA
