GDS data Analysis

  1. Connect GDS to Data Link Connector (DLC).
  2. Turn the Engine "ON".
  3. Change the position of shift lever.

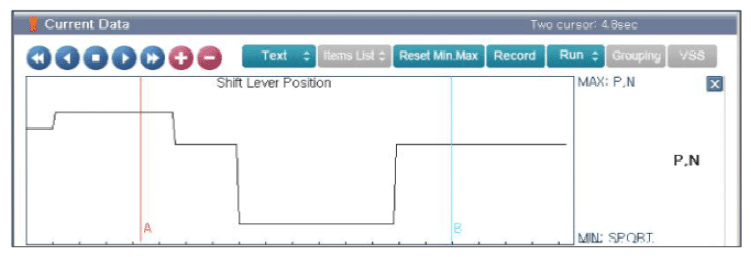

  4. Monitor the "Shift Lever Position" parameter on the "Current Data" menu of the GDS.
    G14522055Courtesy of HYUNDAI MOTOR AMERICA
