Abs Diagnosis (Except HEV) (2 Of 2)
>>
DTC C1687-08: CAN Time-Out VSM2 (MDPS)
>>
Troubleshooting
>>

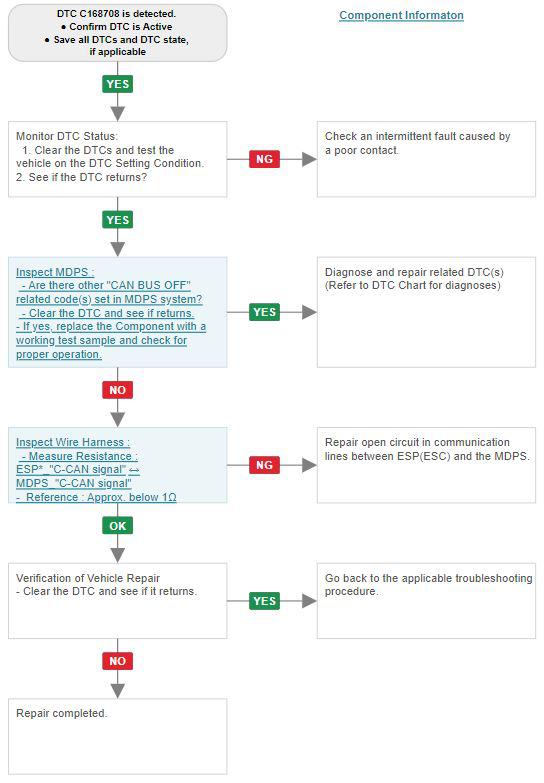

Diagnostic Flowchart
Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
* In a case of replacing Steering Angle Sensor, perform "Steering Angle Sensor Calibration" in "Vehicle S/W Management" menu of the GDS.
Courtesy of HYUNDAI MOTOR AMERICA
