GDS data Analysis

  1. Connect GDS to Data Link Connector (DLC).
  2. Turn the Engine "ON".

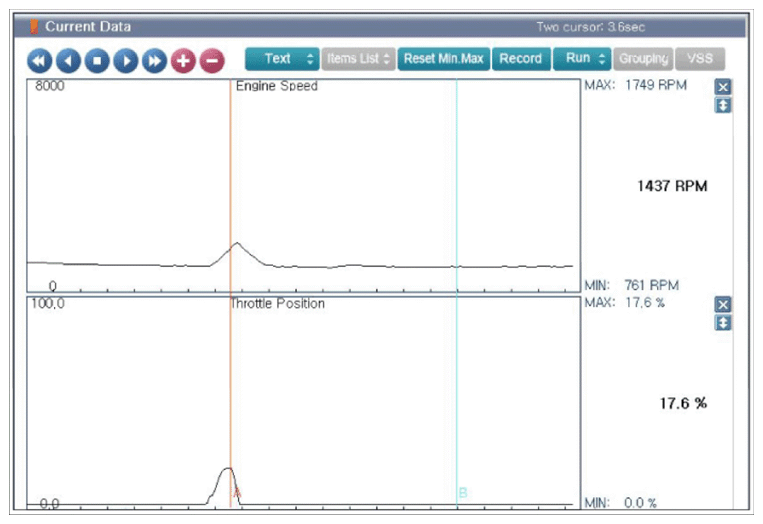

  3. Monitor the "Engine Speed", "Throttle Position" parameter on the "Current Data" menu of the GDS.
    G14522031Courtesy of HYUNDAI MOTOR AMERICA
