GDS data Analysis

  1. Connect GDS to Data Link Connector (DLC).
  2. Turn the engine "ON."
  3. Drive the vehicle with left, right turn.

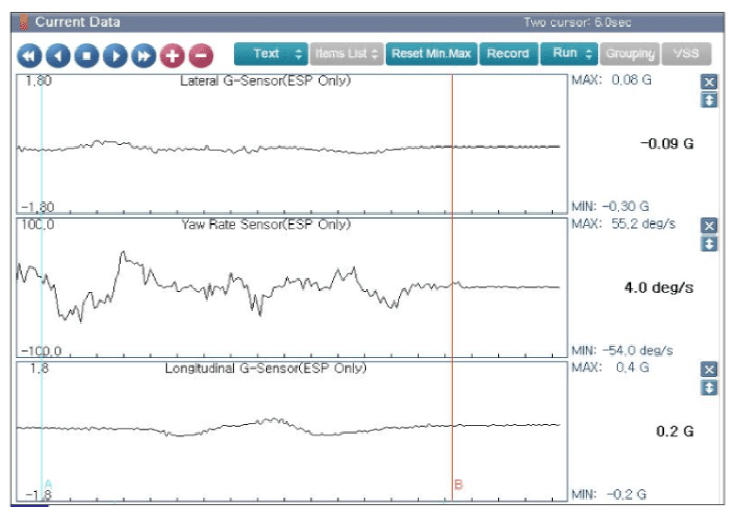

  4. Monitor the "Lateral G Sensor, Yaw Rate Sensor, Longitudinal G Sensor" parameter on the "Current Data" menu of the GDS.

    Specification  : The parameters should be changed while turning.

    G14522029Courtesy of HYUNDAI MOTOR AMERICA
