Diagnostic Flowchart

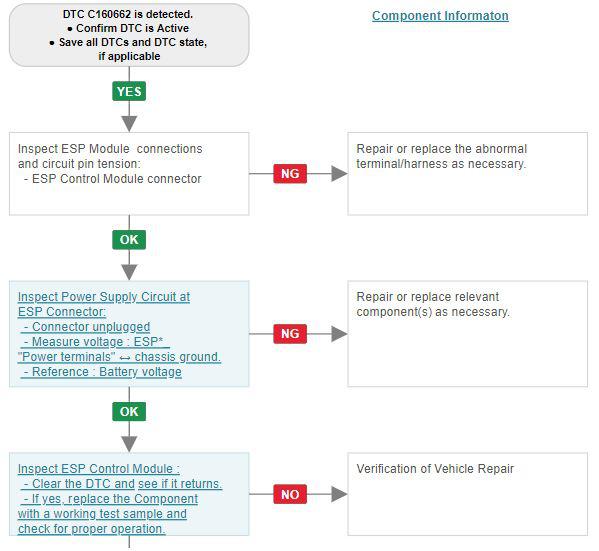

Fig 1: 1 Of 2
G14522014Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: 2 Of 2
G00616172Courtesy of HYUNDAI MOTOR AMERICA
NOTE: *In a case of replacing ESP(ESC), perform following functions:
  1. "Steering Angle Sensor Calibration" for steering angle sensor offset correction (refer to DTC C1261-04  ) -ESP(ESC) only.
  2. "Longitudinal Sensor Calibration" for Longitudinal sensor offset correction (refer to DTC C1285-04  ) - ESP(ESC) only.
  3. "Variant Coding" for option coding (refer to DTC C1702-04 ) .
