Diagnostic Flowchart

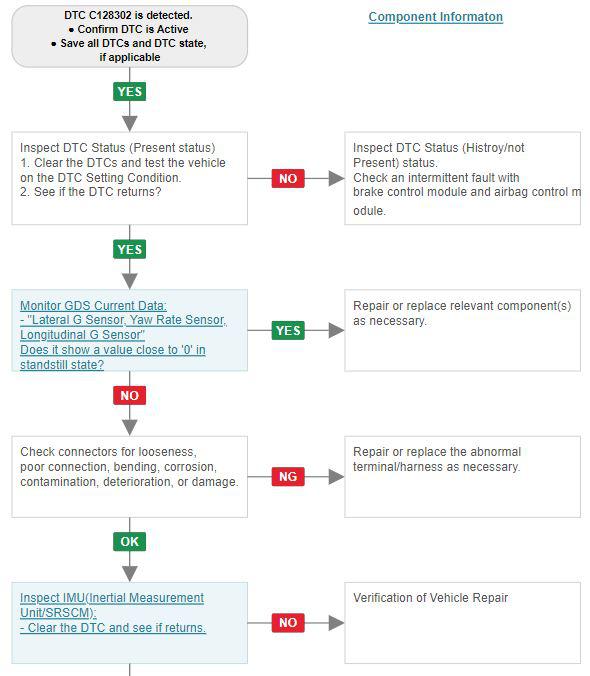

Fig 1: 1 Of 2

Courtesy of HYUNDAI MOTOR AMERICA

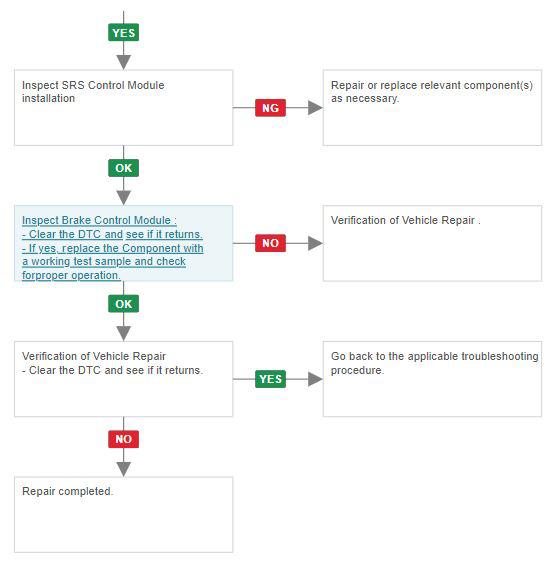

Fig 2: 2 Of 2

Courtesy of HYUNDAI MOTOR AMERICA

NOTE: * In case of replacing the SRSCM, follow the replacement procedure of the DTC B1620 (Internal fault-Replace SRSCM) of the SRSCM and then perform "longitudinal G sensor Calibration" in "Vehicle S/W Management" menu of the GDS. (refer to C128504).
