Abs Diagnosis (Except HEV) (1 Of 2)
>>
DTC C1261-04: Steering Angle Sensor Is Not Calibrated
>>
Troubleshooting
>>

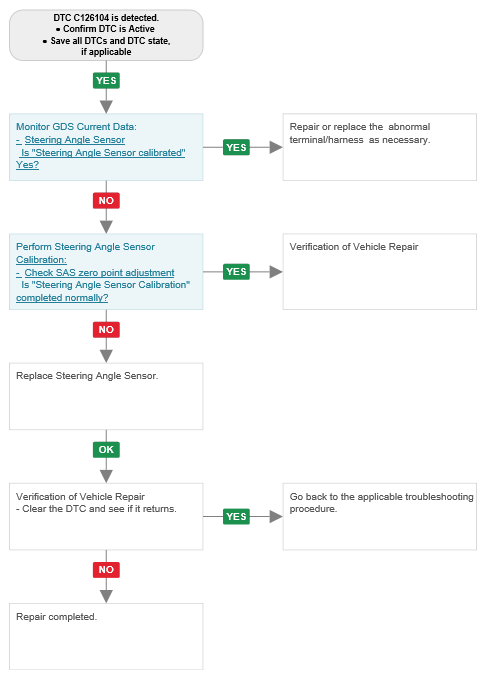

Diagnostic Flowchart
Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
* In a case of replacing Steering Angle Sensor, perform "Steering Angle Sensor Calibration" in "Vehicle S/W Management" menu of the GDS.
Courtesy of HYUNDAI MOTOR AMERICA
